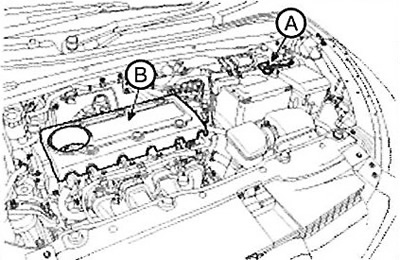

2. Remove the engine cover (A).
3. Remove the front right wheel.
4. Remove the side cover.

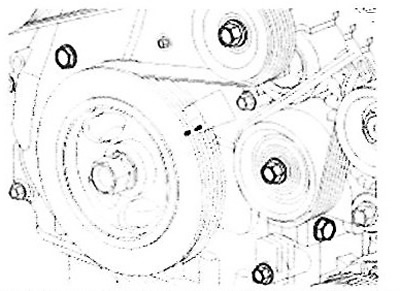

5. Set the piston of cylinder No. 1 to top dead center (TDC) / compression stroke.
6. Drain the engine oil, then place a jack under the oil pan.
Note: Install a wooden block between the jack and the oil pan.

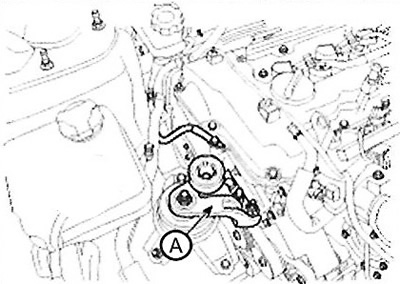

7. Disconnect the wire «masses» and remove the engine mount bracket.

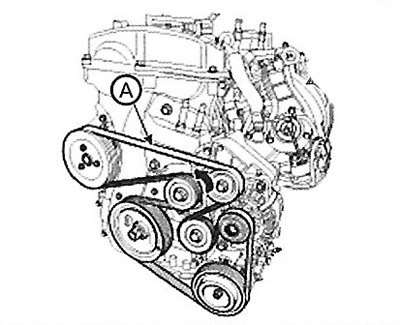

8. Remove the belt (A) accessory drive.
MDPS type
HPS type
9. Disconnect the power steering pump from the bracket.

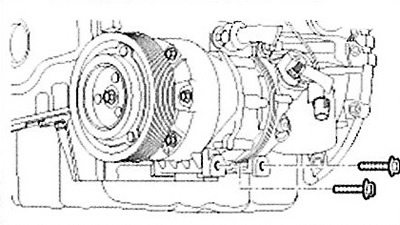

10. Turn away the bottom bolts of fastening of the compressor.

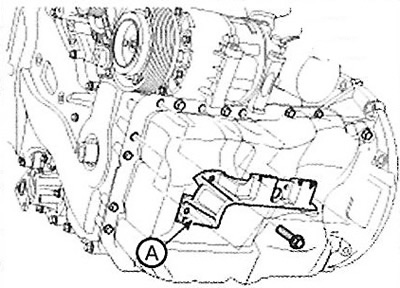

11. Remove bracket (A) compressor.

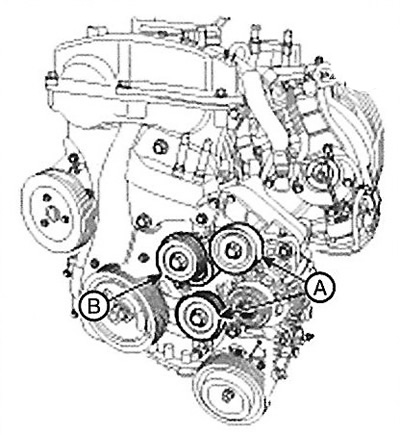

12. Remove pulley (A) and drive belt tensioner (IN).
Attention. Tensioner pulley bolt with left-hand thread.
13. Remove the water pump pulley (A), crankshaft pulley (IN).

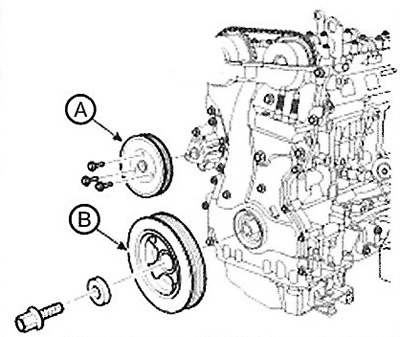

Note: Loosen the crankshaft pulley bolt with the flywheel clamp (09231-2B100), then remove the starter.

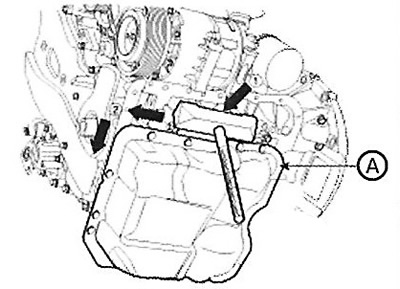

14. Remove the oil pan (A).
Attention. When using a special tool (09215-3C000) when removing the oil pan, be careful not to damage the contact surfaces of the cylinder block and the oil pan.

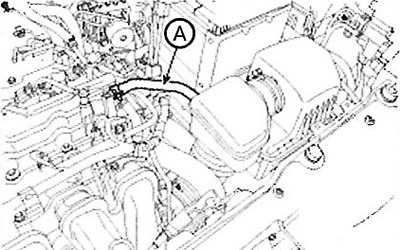

15. Remove breather hose (A).
16. Disconnect the hose (A) crankcase ventilation and connector (IN) oil control valve to the exhaust valves.

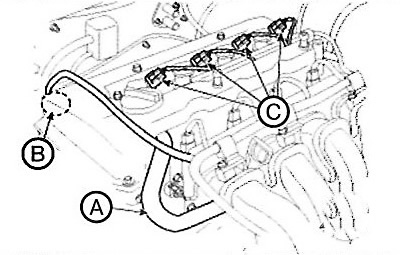

17. Disconnect ignition coil connectors (WITH) and remove coils.

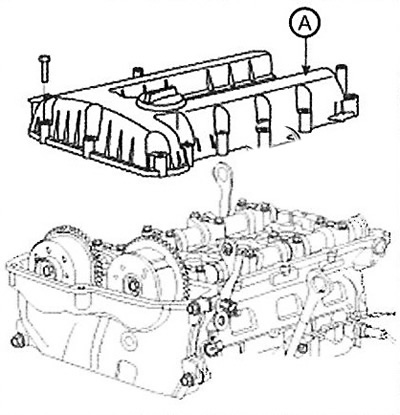

18. Remove the cover (A) cylinder heads.

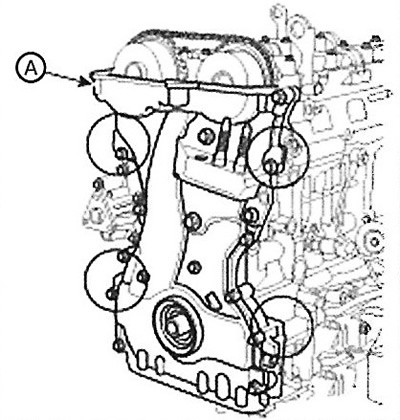

19. Remove the timing chain cover (A).
Attention. Be careful not to damage the contact surfaces of the cylinder block, cylinder head and timing chain cover.
20. The crankshaft key should be flush with the mating surface of the main bearing cap. As a result, the piston of cylinder No. 1 will be at top dead center (TDC), compression stroke.

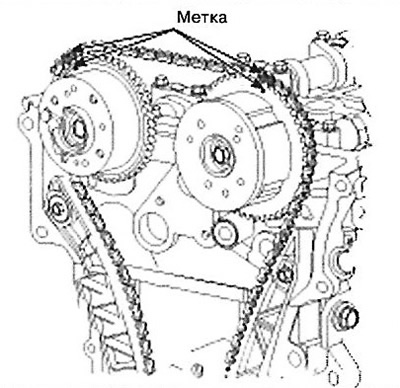

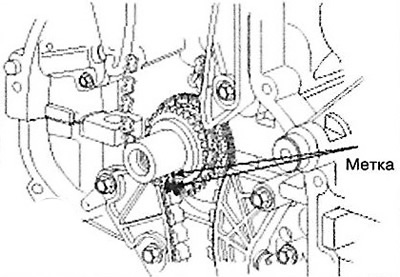

Note: Before removing the drive chain, make a mark on the drive chain regarding the position of the sprocket.

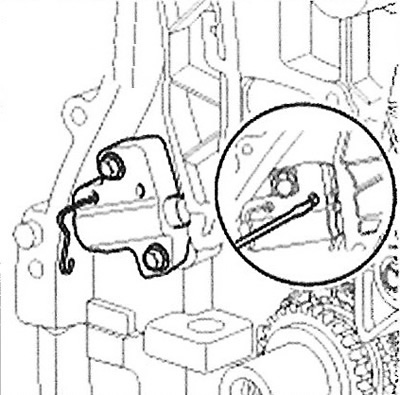

21. Install the locking pin after moving the chain tensioner rod into the housing as shown.

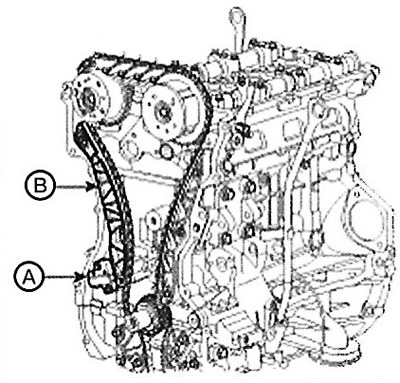

22. Remove chain tensioner (A) and chain tensioner (IN).
23. Remove the timing chain.

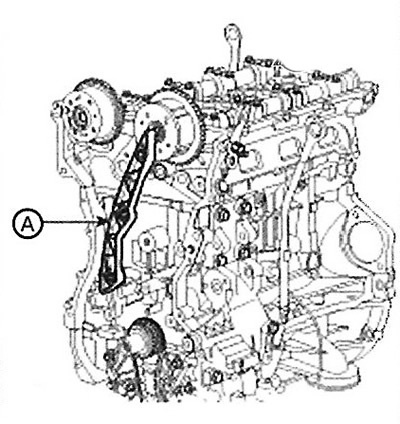

24. Remove the chain guide (A).
25. Remove the timing chain oil nozzle (A).

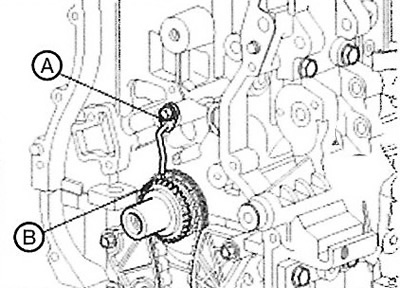

26. Remove the drive chain sprocket from the crankshaft (IN).
27. Remove the balance shaft chain (oil pump).
