Description of Hyundai cars: Matrix, County

Matrix ↓ · County ↓

Hyundai Matrix (2001−2010)

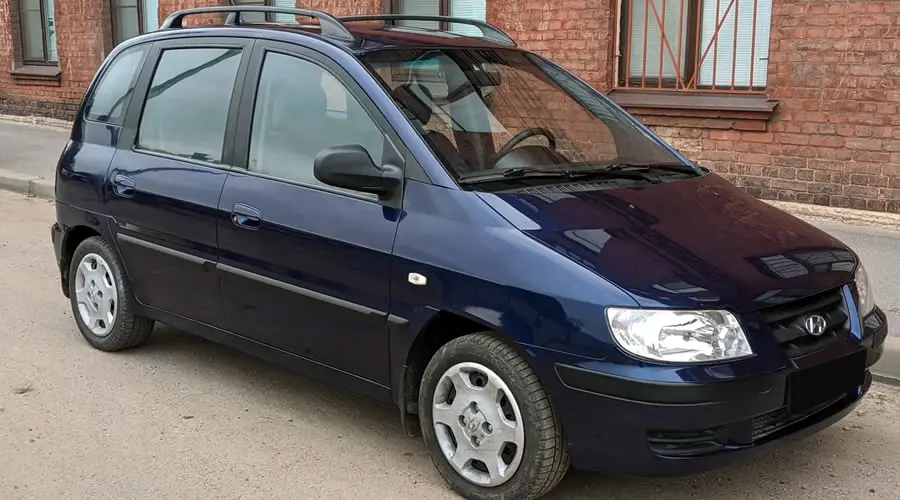

Hyundai Matrix, 2004 year
Hyundai Matrix, 2004 year
Matrix — a subcompact five-door minivan (M-segment), produced from 2001 to 2010 by the Korean automobile manufacturer Hyundai, which after the end of production was replaced by the Hyundai ix20 minivan. In some countries of the eastern region it was called Hyundai Lavita. Based on the same platform as the car "Hyundai Elantra" third generation and has a common mechanical part with a front engine and front-wheel drive. The design was developed by the Italian company "Pininfarina". Sales began in August 2001 and continued until the end of 2010. Assembly was carried out in South Korea, Greece, Egypt, Turkey and Malaysia. Over 200 thousand cars were sold in Europe during 9 years of production.

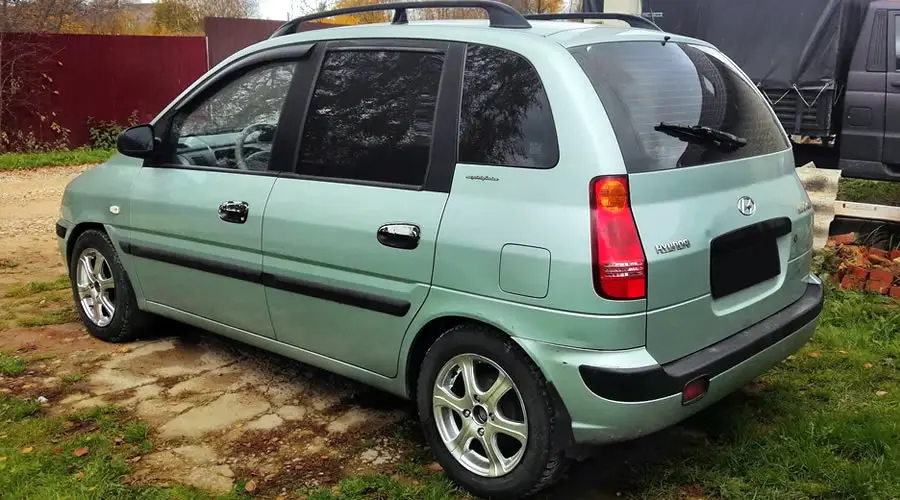

Hyundai Matrix, back view
Hyundai Matrix, back view
The body was only in the form of a five-door hatchback with a length of 4025 mm, a width of 1740 mm, a height of 1635 mm, a wheelbase of 2600 mm and a curb weight of 1370 kg. Petrol engines were installed four-cylinder 1.6 liters (1599 cm³, Beta, G4GR, I4, 103 hp) and 1.8 liters (1795 cm³, Beta, G4GB, I4, 122 hp). Since September 2001, diesel engines with a volume of 1.5 liters (1493 cm³, U-Line, 82/102/110 hp) began to be installed, both four-cylinder and three-cylinder. The gearbox was a five-speed manual and a four-speed automatic.

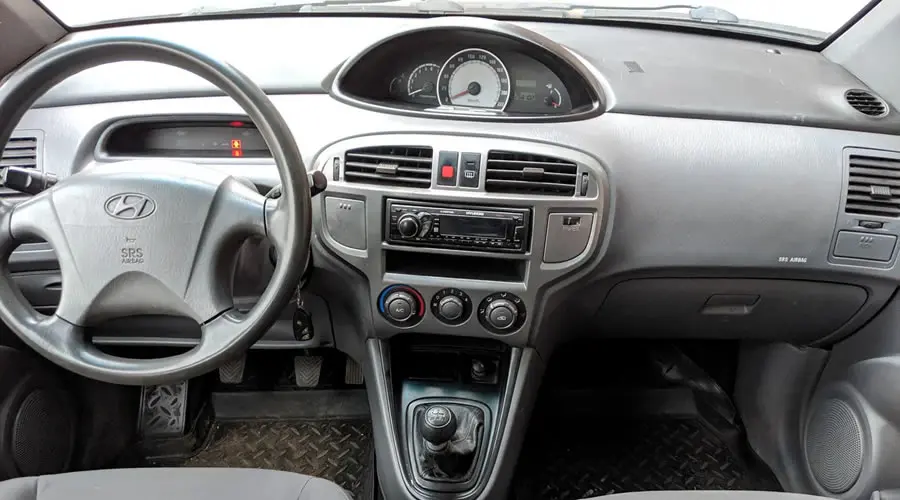

Hyundai Matrix, interior
Hyundai Matrix, interior
During the model's life, two updates were carried out - in 2005 and 2008. In the fall of 2005, an updated Matrix appeared with a new radiator grille, new rear lights, and the three-cylinder diesel was replaced by a four-cylinder with the same volume and increased power. At the Geneva Motor Show in March 2008, the second update of the car was presented. The air intake, radiator grille and fog lights were changed, the outside rear-view mirrors were enlarged, new materials and colors were used inside. The basic configuration now includes six airbags and electronic stability control (ESP).

Hyundai County (1998-present)

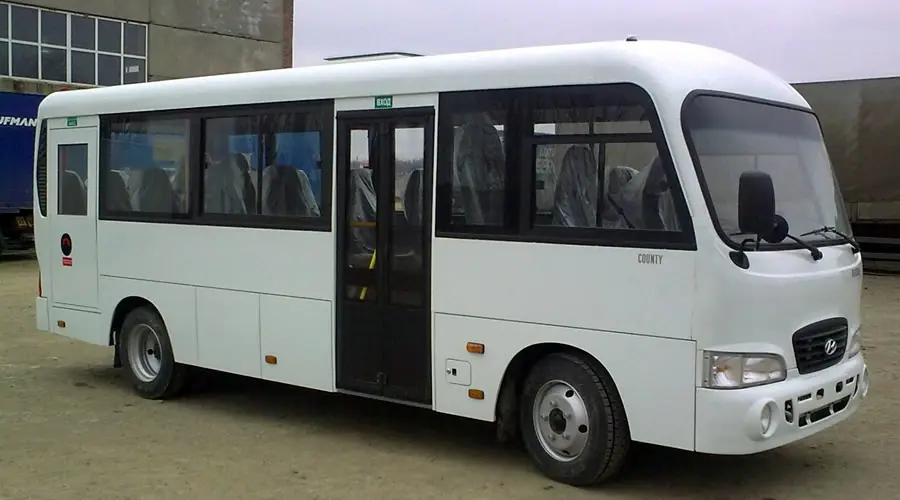

Hyundai County, front view
Hyundai County, front view
County — is a single-decker bus of the South Korean automaker Hyundai, which is used as a tourist and city transport. Replaced the bus called Chorus. It has been produced since 1998 and is currently in production. In 2004, the model was updated and the bus became known as the e-County. It comes in two sizes — Standard is 6.6 meters long and has 15-26 seats, and Long body is 7.8 meters long and has 29-30 seats.

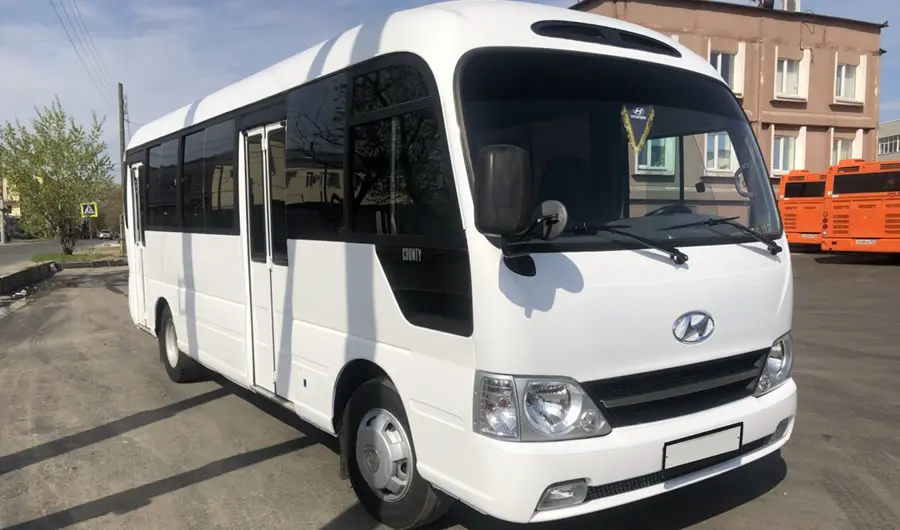

Hyundai County 2012 year
Hyundai County 2012 year
The County has two passenger doors - front and rear, both pneumatic folding type. The curb weight is 3.8 tons, the gross weight is 5.2 tons (Standard model). The maximum speed is 110 km/h.

The bus is equipped with a 3.9-liter diesel engine (D4DB) with a power of 96 kW / 130 hp. The engine has 4 cylinders with an in-line arrangement, 8 valves, direct fuel injection and water cooling. The compression ratio is 18: 1. Only a 5-speed manual transmission was installed (Hyundai M3S5).
