Gas distribution mechanism drive-device (Hyundai Tucson LM)

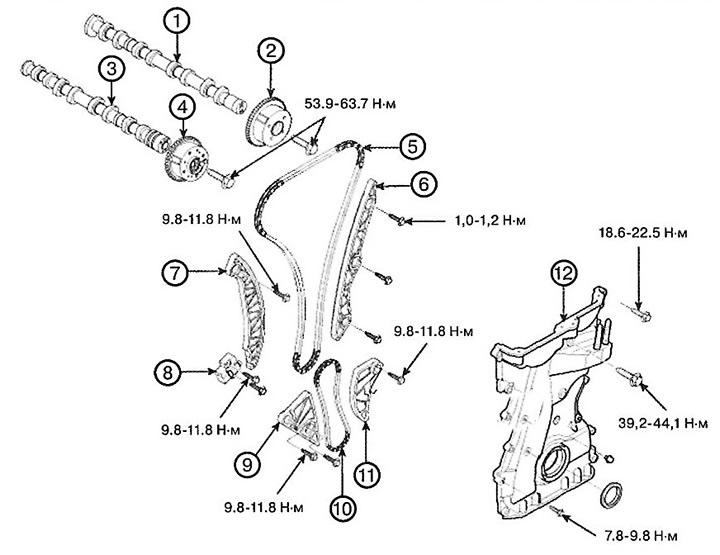

2.0L engines (with oil pump)
1. Intake camshaft
2. Phase shifter
3. Exhaust camshaft
4. Phase shifter
5. Gas distribution mechanism drive chain
6. Chain guide
7. Chain tensioner lever
8. Chain tensioner
9. Oil pump chain guide
10. Oil pump drive chain
11. Oil pump drive chain tensioner lever
12. Valve timing chain cover

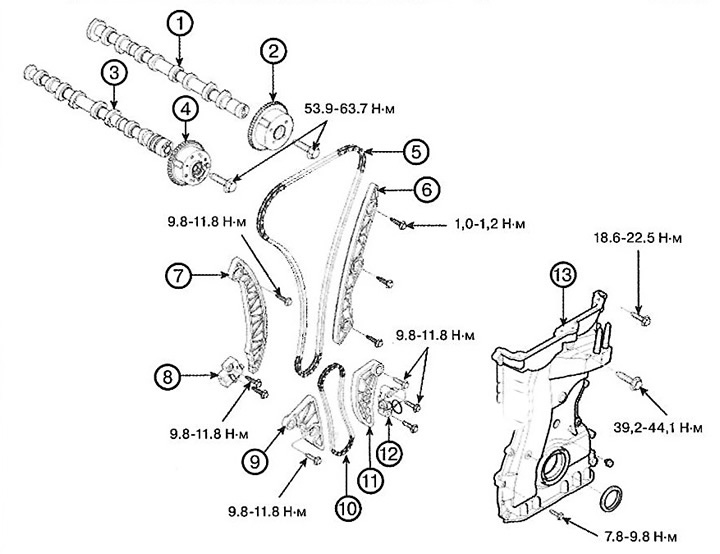

2.4L Engines (with Balance Shaft)
1. Intake camshaft
2. Phase shifter
3. Exhaust camshaft
4. Phase shifter
5. Gas distribution mechanism drive chain
6. Chain guide
7. Chain tensioner lever
8. Chain tensioner
9. Balance shaft drive chain guide
10. Balance shaft drive chain
11. Balance shaft drive chain tensioner lever
12. Balance shaft drive chain tensioner
13. Valve timing chain cover
