Cylinder block — device (Hyundai Tucson LM)

0

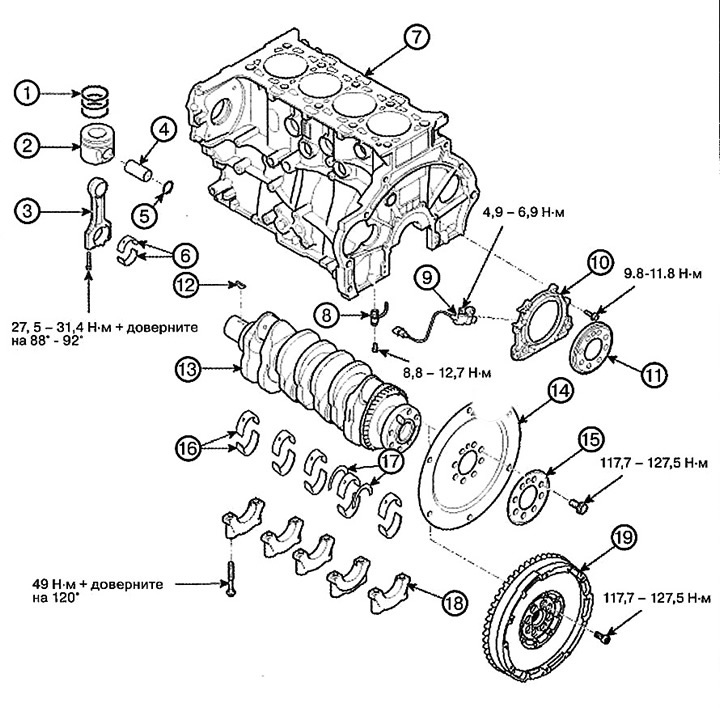

1. Piston rings

1. Piston rings
2. Piston
3. Connecting rod
4. Piston pin
5. Retaining ring
6. Connecting rod bearing shells
7. Cylinder block
8. Oil nozzle
9. Crankshaft position sensor
10. Rear oil seal housing
11. Encoder
12. Crankshaft sprocket key
13. Crankshaft
14. Leading disk
15. Intermediate plate
16. Main bearing shells
17. Thrust bearing
18. Main bearing cap
19. Flywheel
