Cylinder head assembly — disassembly (Hyundai Tucson LM)

1. Remove the valves:

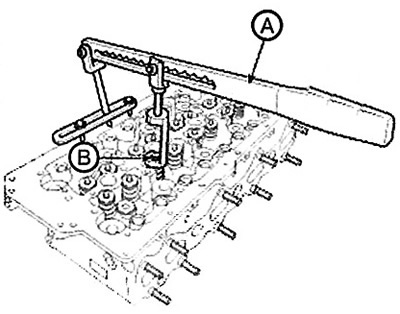

Using special tools (09222-ЗКООО, 09222-2А100) (A), compress the valve spring and remove the crackers (B).

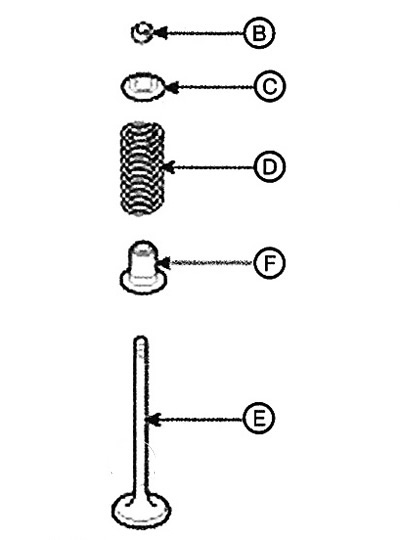

Remove the spring plate (C).

Remove the valve spring (D).

Remove valve (E).

Remove the oil seal (F) with needle-nose pliers.
