Withdrawal
1. Disconnect the brake fluid level sensor connector from the reservoir and remove the reservoir cap.
2. Pump out a brake liquid from a tank of the main cylinder by means of the syringe.
Attention. Do not allow brake fluid to get on the surface of the car: this can lead to damage to the paintwork. If brake fluid gets on a painted surface, it must be washed off immediately with water.
3. Remove the wheel.
4. Remove the brake hose clamp (A).

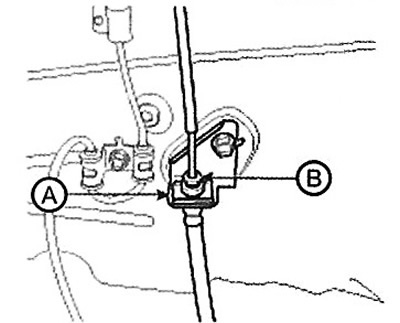

Front end

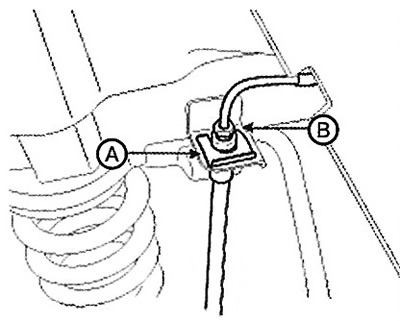

Rear end
5. Loosen the flare nut (IN) and disconnect the brake pipe.
Note: Tightening torque: 12.7 - 16.7 Nm.
6. Disconnect the hose from the brake caliper by unscrewing the bolt (WITH).
Note: Tightening torque: 24.5 - 29.4 Nm.

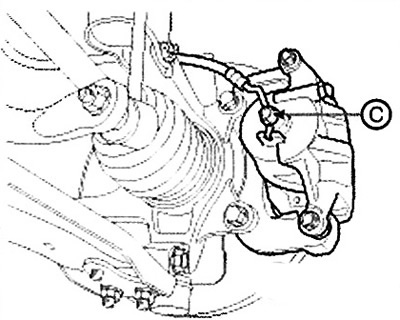

Front end

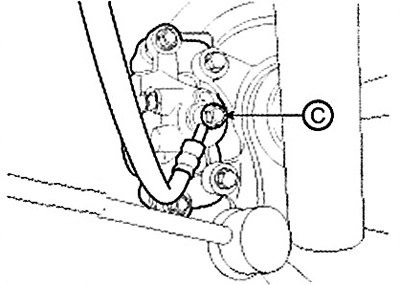

Rear end
Checking the technical condition
1. Check the brake pipes for cracks, dents and corrosion.
2. Inspect the brake hoses for cracks, damage and fluid leaks.
3. Inspect the nozzle flare nuts for damage and signs of fluid leakage.
4. Inspect the brake hose mounting bracket for cracks or deformation.
Installation
1. Installation is carried out in the reverse order.

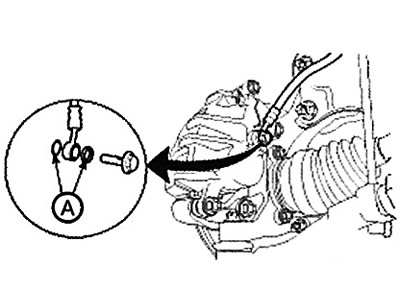

Attention. Always install a new washer when reassembling (A).
2. After installation, bleed the air from the brake system.
3. Check for spilled brake fluid.
