2. Apply grease to the drive shaft and install the dust boots.

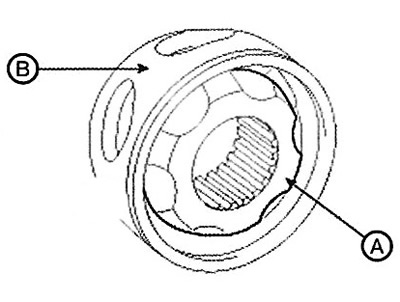

3. Apply the recommended grease to the inner ring (A) and housing (B). Install the housing (B) so that there is a shift relative to the ring, as shown in the figure.
Note: Use the grease provided in the repair kit.
4. Apply the required grade of grease to the housing and insert the balls into the housing.

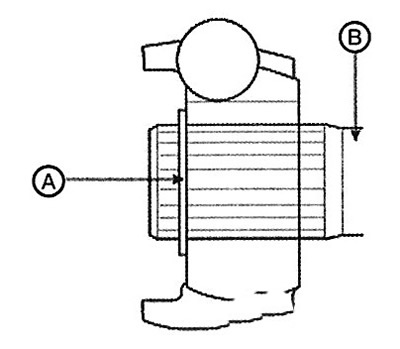

5. Position part (A) with the selected groove as shown in the figure. Install the inner ring on the drive shaft (B), then install the snap ring.
6. Apply the recommended grease to the outer race, then install the outer race of the Birfield joint onto the drive shaft.
7. Apply the recommended grease to the tripod joint boot, then install the boot with the clamp.
8. Tighten the tripod joint boot clamps.
9. Add the required grade of grease to the Birfield joint in the same amount that was removed during the technical condition check.
10. Install the anthers.
11. Tighten the clamps of the Birfield joint boot.

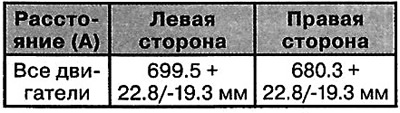

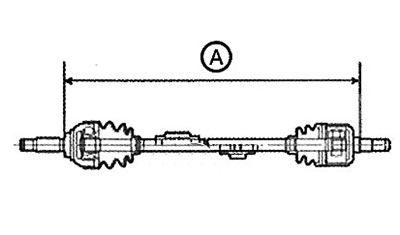

12. To ensure the permissible volume of air inside the tripod joint boot, maintain the specified distance between the boot clamps when tightening them.
 |
 |
