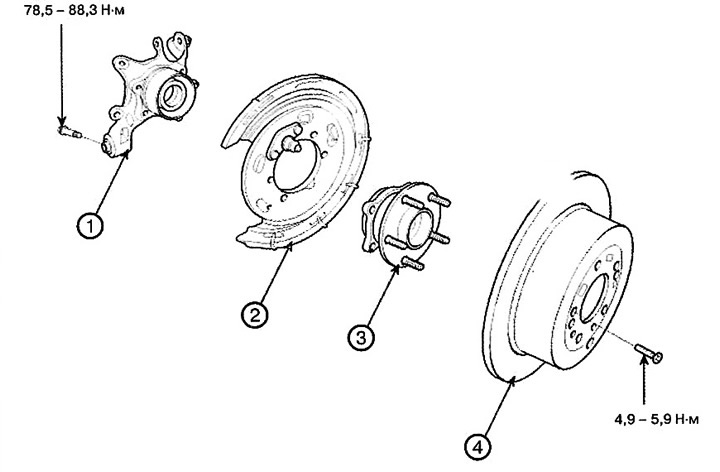

1. Wheel support
2. Parking brake
3. Hub assembly
4. Brake disc
Removal and installation
1. Follow steps 1-12 of section «Removal and installation of rear drive shafts».

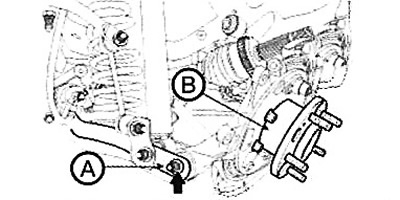

2. Remove the lower arm (A) from a support (IN) wheels.
Note: Tightening torque: 137.2 - 156.9 Nm.
3. Installation is carried out in the reverse order of removal.
Checking the technical condition
1. Check hub for cracks and splines for wear.
2. Check the brake disc for nicks and damage.
3. Check the wheel bearing for cracks.
4. Check the bearing for cracks or damage.
