Contents: Removal ⇓ Examination ⇓
Removal

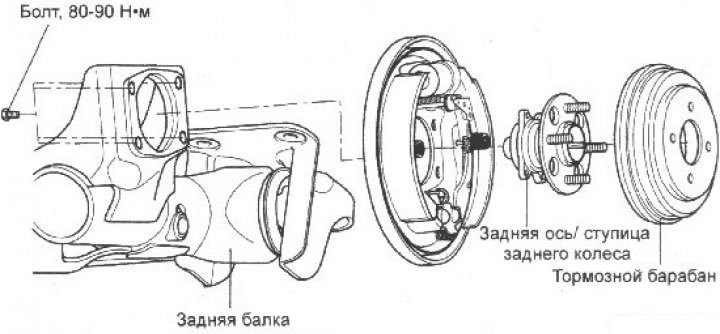

1. Remove the brake drum.
Note: Remove the brake drum after unscrewing the screw.
Note: When removing the ABS sensor, be careful not to hit the sensor tip against the rotor teeth or other parts.

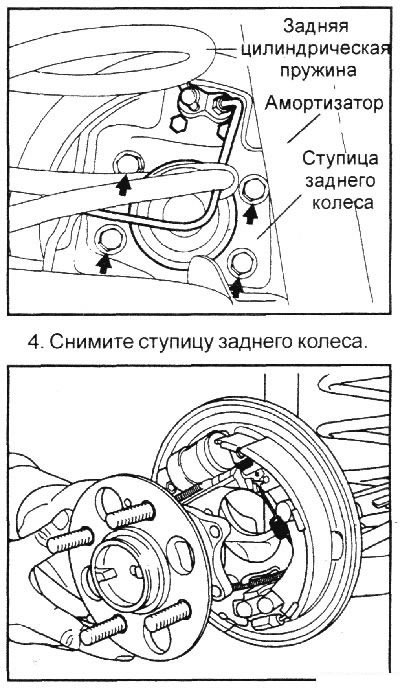

3. Remove the rear wheel hub mounting bolts.
Examination
1. Check the rear wheel hub bearing for wear or damage.
The text is taken from an online source: hyundaibook
2. Check the sealing ring for wear and damage.
3. Check the hub bearing for abnormal noise when turning it.

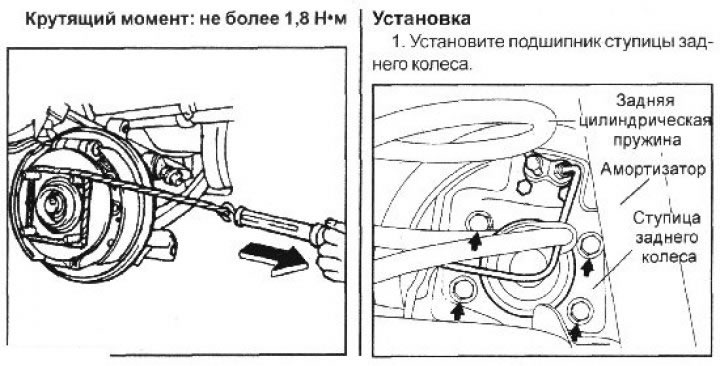

4. Measure the torque required to turn the rear wheel hub bearing.
