Rear drive shafts — device (Hyundai Tucson LM)

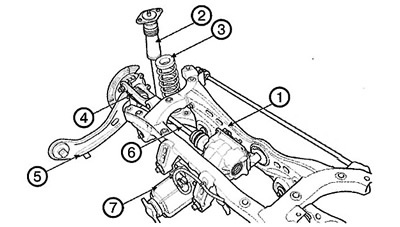

1. Subframe
2. Shock absorber
3. Spring
4. Upper arm
5. Trailing arm
6. Drive shaft
7. Main gear housing

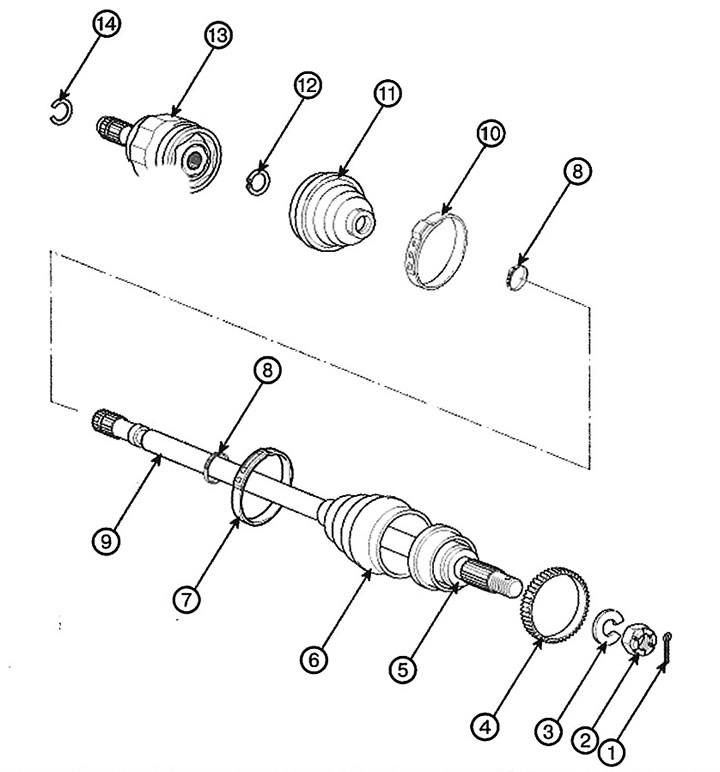

1. Locking pin
2. Castle nut
3. Washer
4. Phonic wheel
5. Bierfield hinge
6. BJ (Birfield) joint boot
7. Large clamp of the BJ joint boot (Bearfield)
8. Smaller boot clamp
9. Shaft
10. Large clamp of the tripod joint boot
11. TJ joint boot ("tripod").
12. Retaining ring
13. Tripod joint assembly
14. Retaining ring
