Front drive shafts — device (Hyundai Tucson LM)

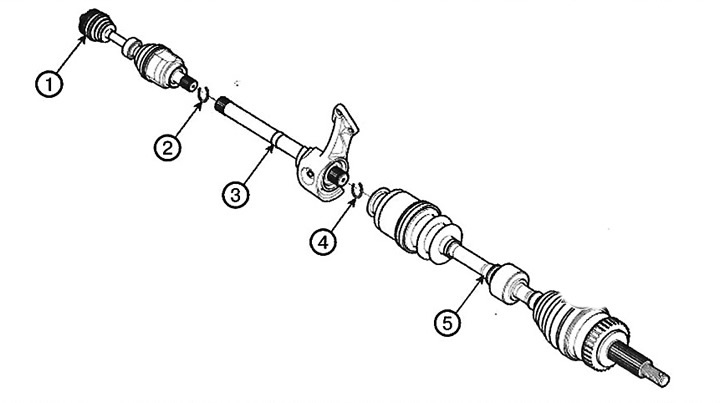

1. Left drive shaft
2. Retaining ring
3. Inner shaft
4. Retaining ring
5. Right drive shaft

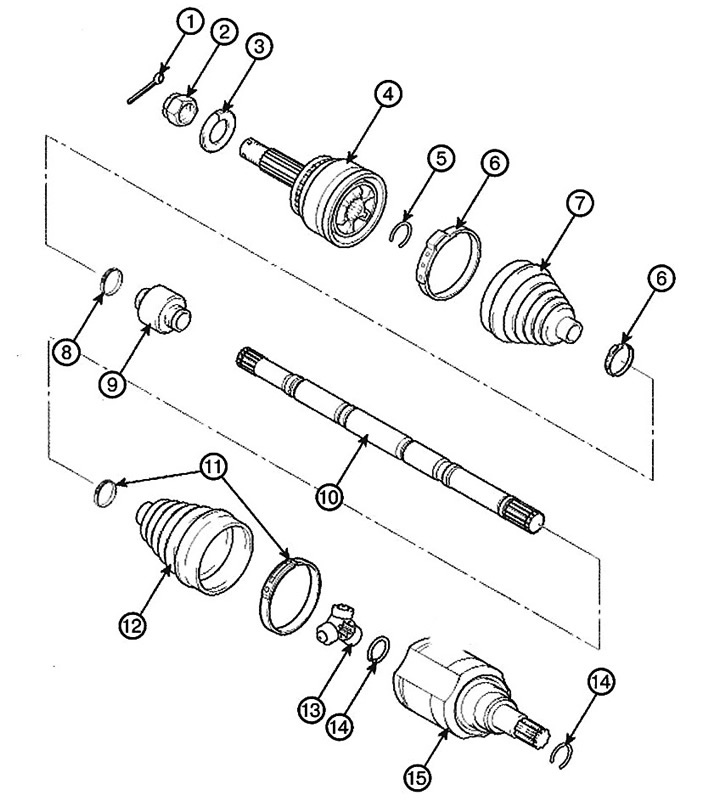

Left drive shaft
1. Locking pin
2. Castle nut
3. Washer
4. Bierfield hinge
5. Retaining ring A
6. Clamp of the Birfield joint boot
7. Birfield joint boot
8. Dynamic damper clamp
9. Dynamic damper
10. Shaft
11. Tripod joint boot clamps
12. Tripod joint boot
13. Triple fork
14. Retaining ring
15. Tripod joint assembly

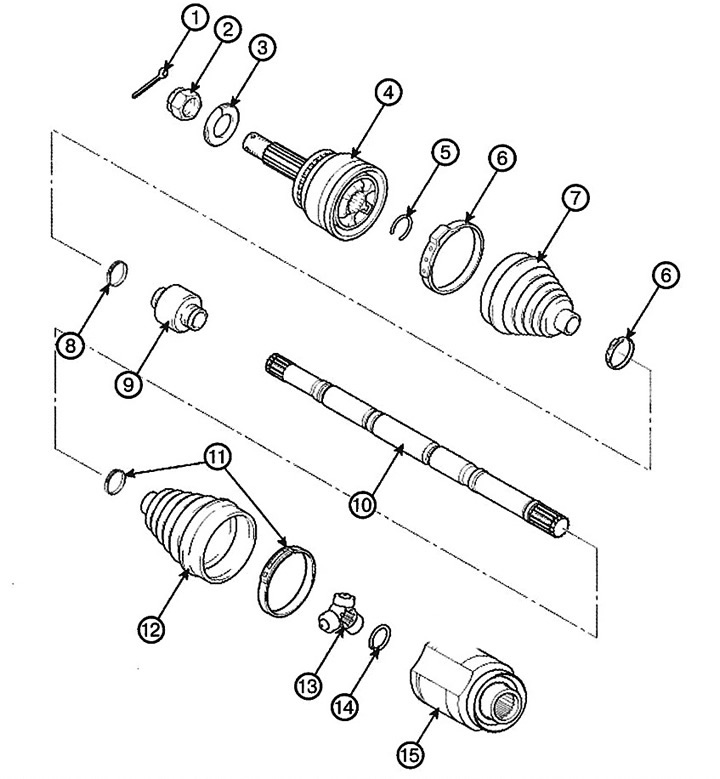

Right drive shaft
1. Locking pin
2. Castle nut
3. Washer
4. Bierfield hinge
5. Retaining ring A
6. Clamp of the Birfield joint boot
7. Birfield joint boot
8. Dynamic damper clamp
9. Dynamic damper
10. Shaft
11. Tripod joint boot clamps
12. Tripod joint boot
13. Triple fork
14. Retaining ring
15. Tripod joint assembly
