Power steering gear — device (Hyundai Tucson LM)

0

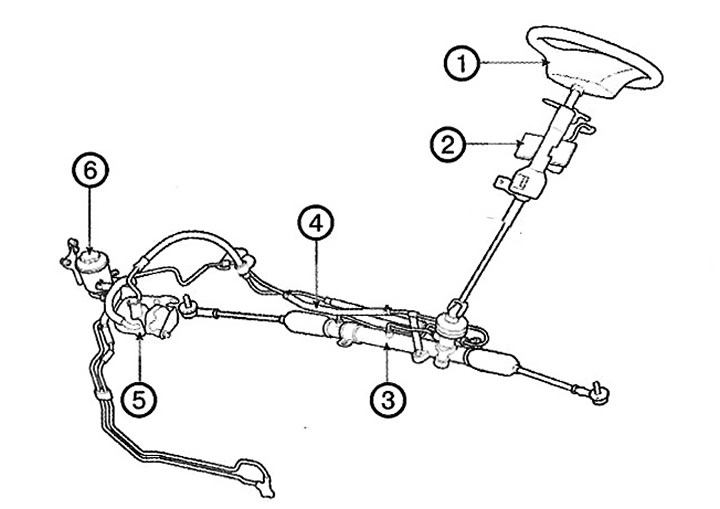

1. Steering wheel

1. Steering wheel
2. Steering column
3. Steering mechanism
4. Power steering hose
5. Oil pump
6. Tank

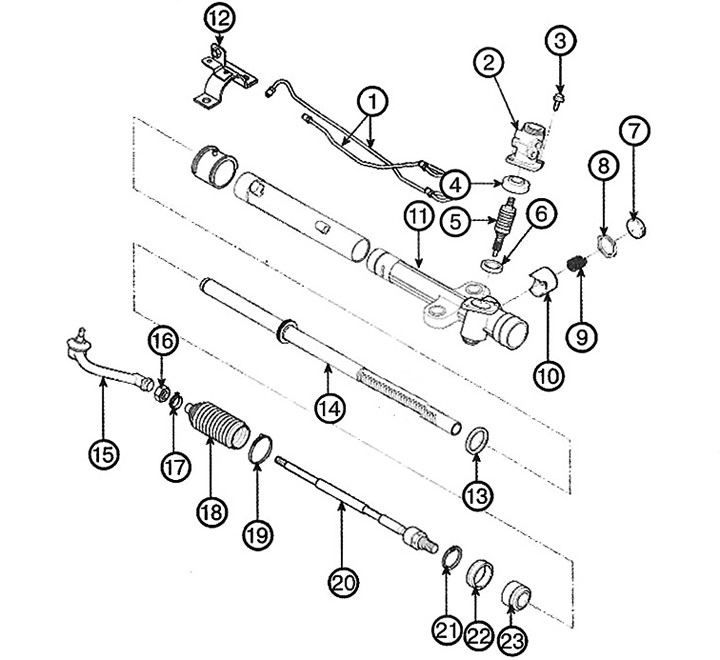

1. Feed pipeline

1. Feed pipeline
2. Valve body
3. Bolt
4. Seal
5. Gear
6. Seal
7. Rack stop plug
8. Lock nut
9. Rack stop spring
10. Rack stop
11. Rack housing
12. Steering gear mounting clamp
13. Seal
14. Rail
15. Tie rod end
16. Lock nut
17. Dust cover clamp
18. Dust cover
19. Dust cover clamp
20. Steering rod
21. Clamp
22. Seal
23. Rack stopper
