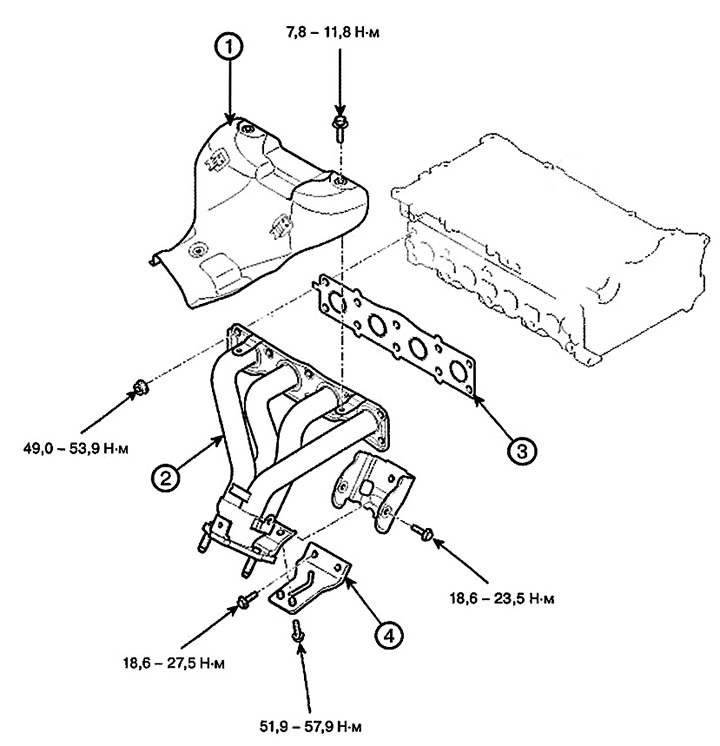

An exhaust manifold
1. Heat shield
2. Exhaust manifold
3. Gasket exhaust manifold
4. Exhaust manifold support
Removal and installation
1. Disconnect the wire from the negative battery terminal.
Note: Tightening torque: 4.0-6.0 Nm.

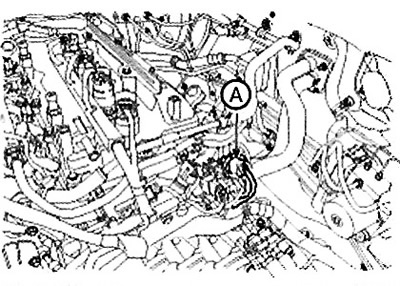

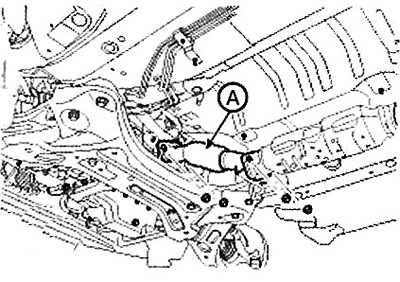

2. Disconnect the connector (A) oxygen sensor and remove the front muffler (IN).
Note: Tightening torque: 39.2 - 58.8 Nm.

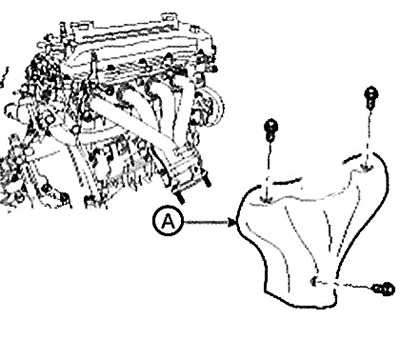

3. Remove heat shield (A).
Note: Tightening torque: 7.8 - 11.8 Nm.

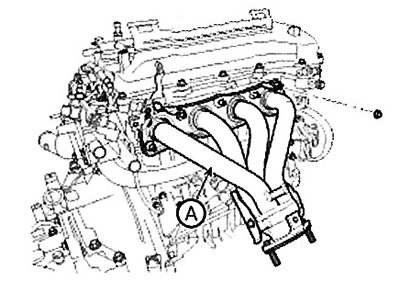

4. Remove the exhaust manifold support, then remove the exhaust manifold (A).
Note: Tightening torque:
- Support bolt M8: 18.6 - 27.5 Nm.
- Support bolt M10: 51.9 - 57.9 Nm
- Manifold nut: 49.0 - 53.9 Nm
5. Installation is made in an order, the return to removal. A new manifold gasket must be used.
