Diesel Engine Silencer (Hyundai Tucson LM)

0

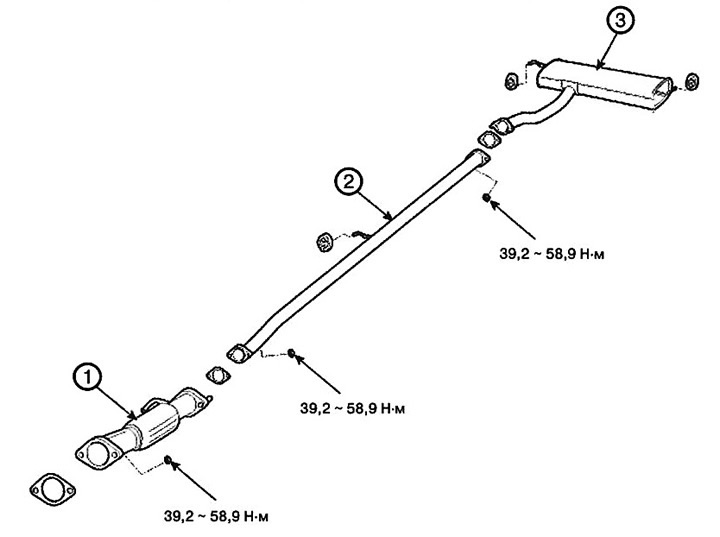

1. Front muffler

1. Front muffler
2. Central muffler
3. Main muffler

Removal and installation

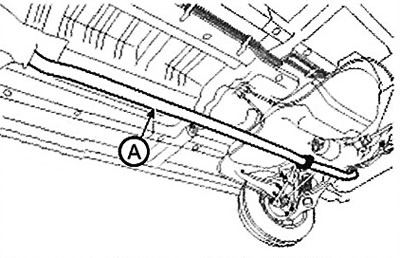

1. Remove the front muffler (A).

Note: Tightening torque: 39.2 - 58.9 Nm.

Note: Tightening torque: 39.2 - 58.9 Nm.

2. Remove the center muffler (A).

Note: Tightening torque: 39.2-58.9 Nm

Note: Tightening torque: 39.2-58.9 Nm

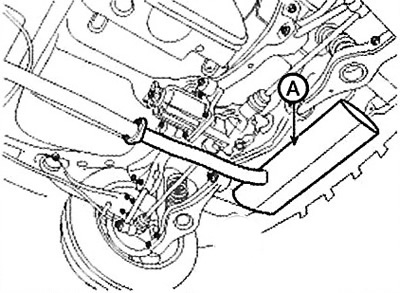

3. Remove the main muffler (A).

3. Remove the main muffler (A).

4. Install in the reverse order of removal.
