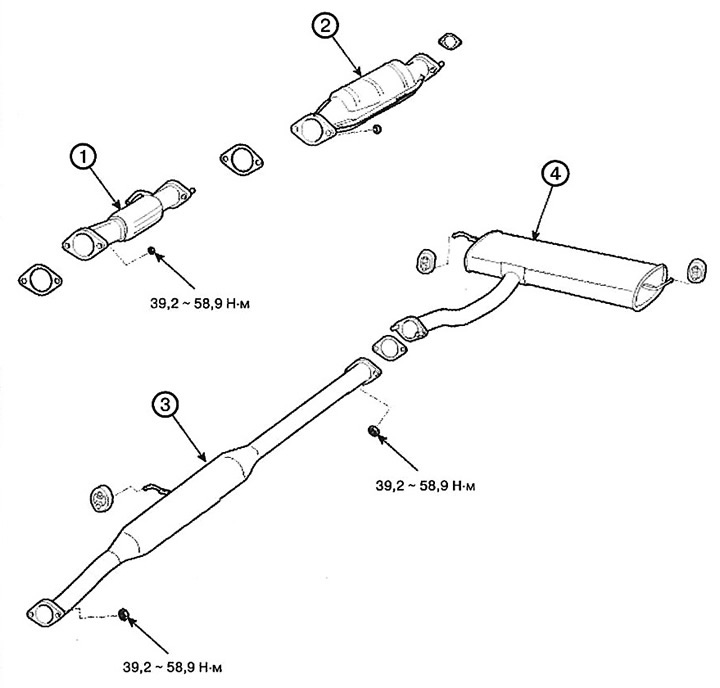

1. Front muffler
2. Catalytic converter
3. Central muffler
4. Main silencer
Removal and installation

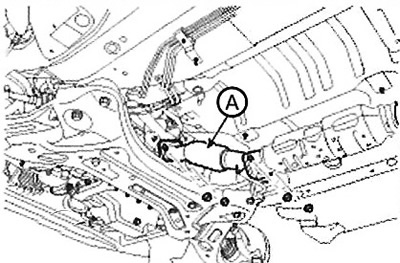

1. Disconnect the connector (A) oxygen sensor and remove the front muffler (IN).
Note: Tightening torque: 39.2 - 58.8 Nm.

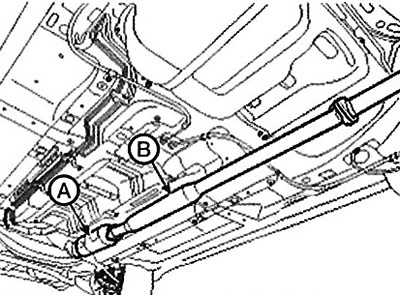

2. Remove the catalytic converter (A) and center muffler (IN).
Note: Tightening torque: 39.2 - 58.8 Nm.

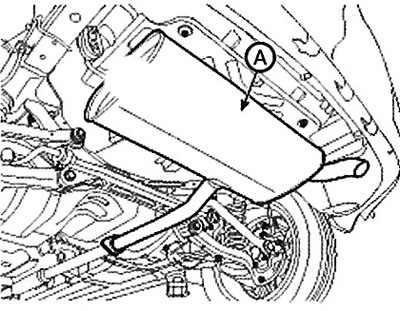

3. Remove the main muffler (A).
Note: Tightening torque: 39.2 - 58.8 Nm.
4. Installation is made in an order, the return to removal.
