Starter relay (Hyundai Tucson LM)

0

Checking the technical condition



1. Remove the fuse box cover.

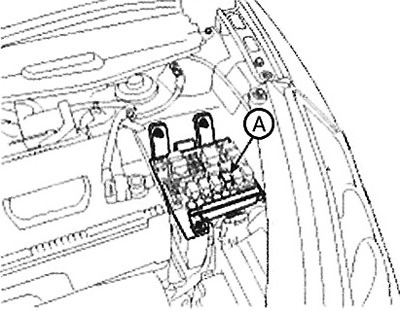

2. Remove the starter relay (A).

2. Remove the starter relay (A).


3. Use an ohmmeter to check for continuity between each terminal.

3. Use an ohmmeter to check for…

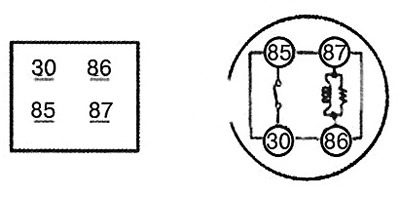

4. Apply 12V to terminal 85 and connect terminal 86 to ground. Check the continuity between terminals 30 and 87.

4. Apply 12V to terminal 85 and connect…


5. If there is no continuity, replace the starter relay with a new one.

6. Install the starter relay.

7. Install the fuse box cover.
