Rear stabilizer bar (Hyundai Tucson LM)

Replacement

1. Remove the rear wheel.

Note: Tightening torque: 88.3-107.9 Nm.

Caution: Be careful not to damage the hub studs when removing the rear wheel.

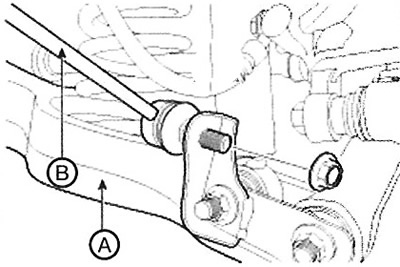

2. Loosen the nut and remove the rear stabilizer link (B) from the rear lower arm (A).

Note: Tightening torque: 98.1 - 117.7 Nm.

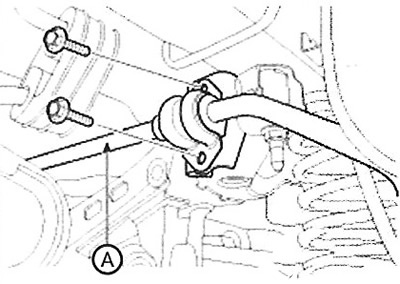

3. Loosen the mounting bolt and then remove the stabilizer (A) from the subframe.

Note: Tightening torque: 44.1 - 53.9 Nm.

4. Installation is carried out in reverse order.

Checking the technical condition

1. Check the rear stabilizer for deformation.

2. Check the stabilizer link ball joint for damage.
