Upper arm rear suspension (Hyundai Tucson LM)

Replacement

1. Remove the rear wheel.

Note: Tightening torque: 88.3-107.9 Nm.

Caution: Be careful not to damage the hub studs when removing the rear wheel.

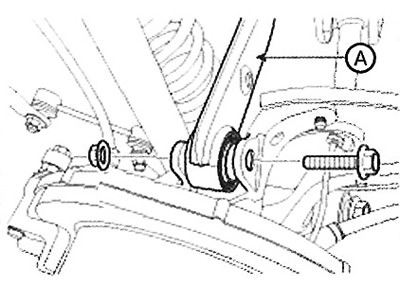

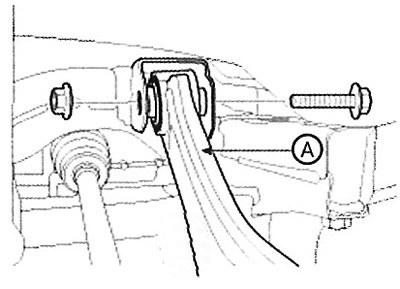

2. Remove the bolt and nut and remove the rear upper arm (A) from the rear axle.

Note:

Tightening torque:

• 2WD: 137.3-156.9 Nm.
• 4WD: 98.1 - 117.7 Nm.

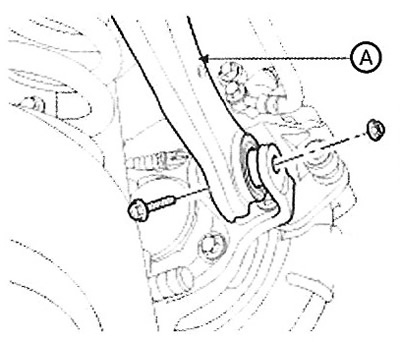

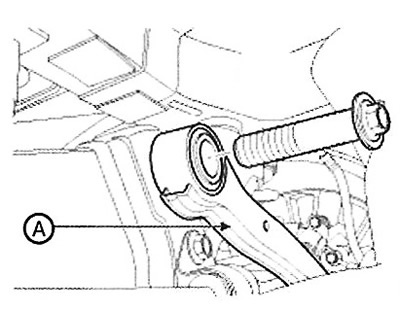

3. Remove the bolt and nut and remove the rear upper arm (A) from the subframe.

Note:

Tightening torque:

• 2WD: 137.3-156.9 Nm.
• 4WD: 98.1 - 117.7 Nm.

4. Installation is carried out in reverse order.



Information is copied from the website: HYUNDAIBOOK

Checking the technical condition

1. Check the bushing for wear and deformation.

2. Check the rear upper arm for deformation and damage.

3. Check all bolts and nuts.
