Lower arm rear suspension (Hyundai Tucson LM)

Replacement

1. Remove the rear wheel.

Note: Tightening torque: 88.3-107.9 Nm.

Caution: Be careful not to damage the hub studs when removing the rear wheel.

2. Loosen the nut and remove the rear stabilizer link (B) from the rear lower arm (A).

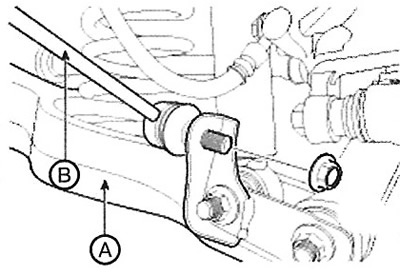

Note: Tightening torque: 98.1 - 117.7 Nm.

3. Remove the bolt and nut and remove the rear lower arm (A) from the rear axle.

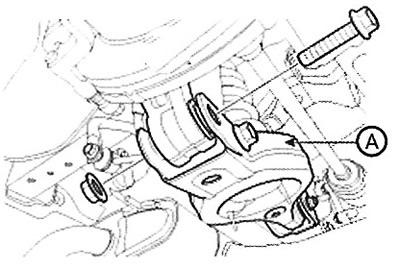

Note: Tightening torque: 137.3-156.9 Nm.

4. Remove the bolt and nut and remove the rear lower arm (B) from the subframe (A).

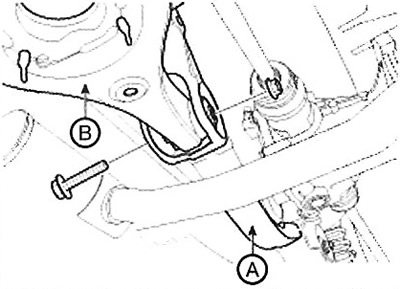

Note: Tightening torque: 107.9-117.7 Nm.

5. Installation is carried out in reverse order.

Checking the technical condition

1. Check the bushing for wear and deformation.

2. Inspect the rear lower control arm for deformation.

3. Check the spring and spring lining for deformation and deterioration.

4. Check all bolts and nuts.
