Position and meaning of part marks:

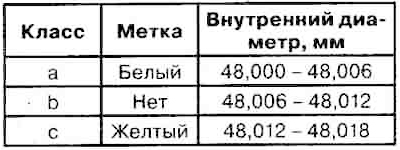

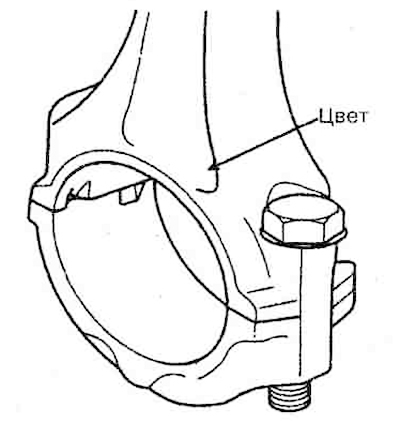

1. Position of the connecting rod mark.
 |
 |

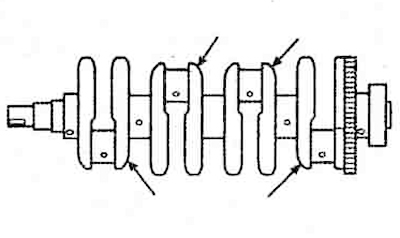

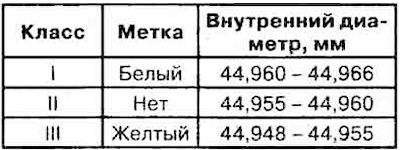

2. Position of the crankshaft journal size group mark.
 |
 |

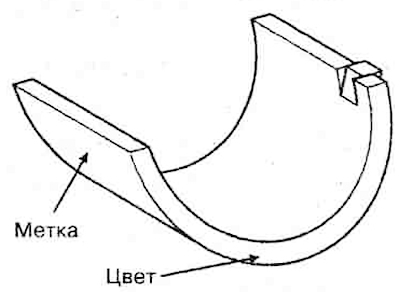

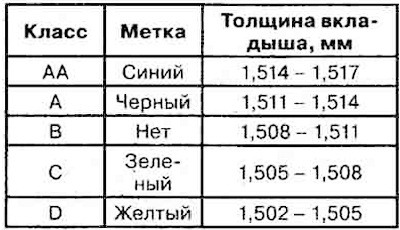

3. Marking of connecting rod bearings.
 |
 |

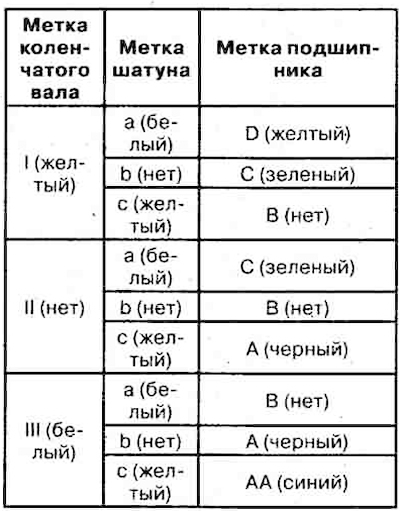

4. The selection of connecting rod group parts according to the group of repair dimensions is carried out according to the table.
5. The letters stamped on the end of the cylinder block are the size mark for each of the four main bearings. Use these marks and the marks on the crankshaft to select the connecting rod bearings.
Position of marks for selection of main bearing shells:

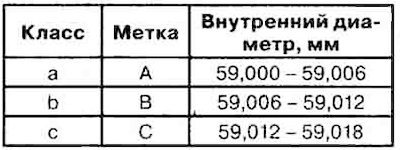

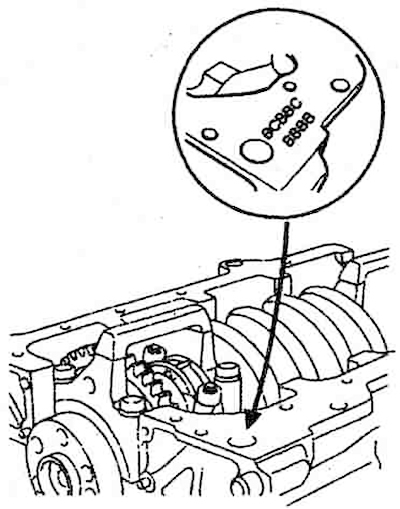

1) Position of marks on the cylinder block.
 |
 |

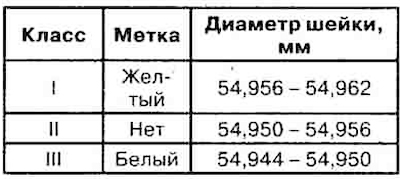

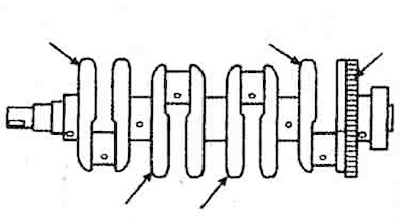

2) Position of marks on the crankshaft.
 |
 |

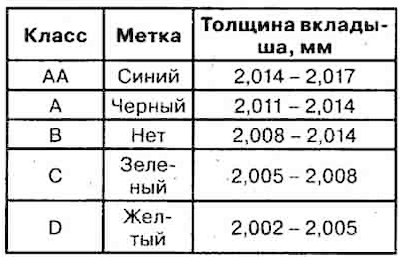

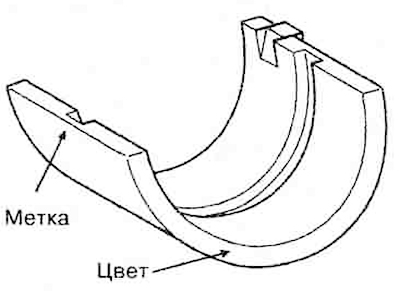

3) Position of marks on the main bearing shell.
 |
 |

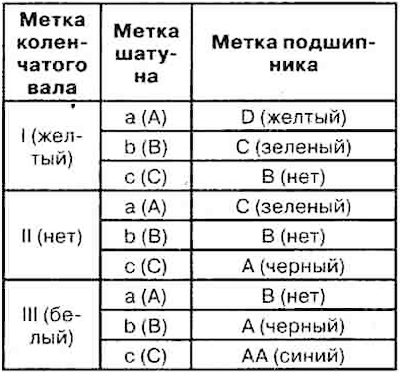

4) The selection of parts according to the group of repair dimensions is carried out according to the table.
(The original text is available on the website HYUNDAIBOOK)

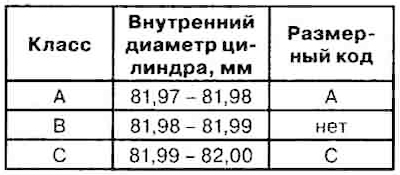

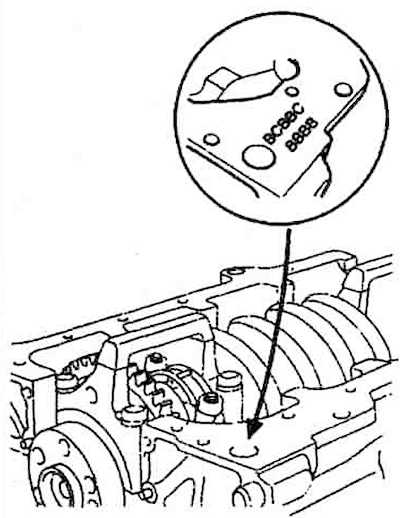

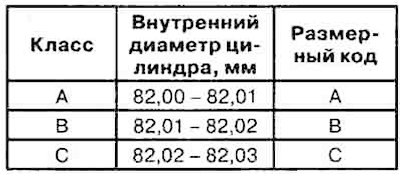

6. Cylinder diameter marks (A) on the surface of the cylinder block.
 |
 |

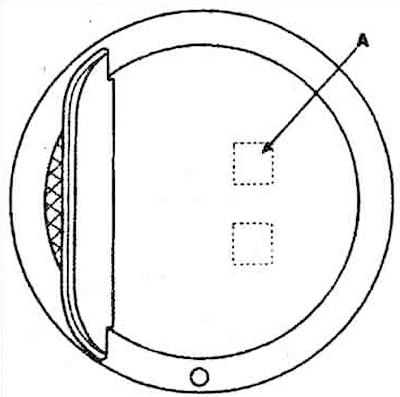

7. Check the piston size code (A) on its upper surface.
 |
 |
