2. Disconnect the oxygen sensor (lambda probe) connector.

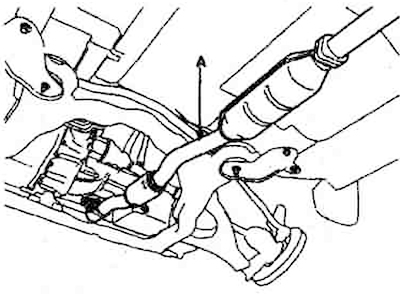

3. Remove the front muffler (A).

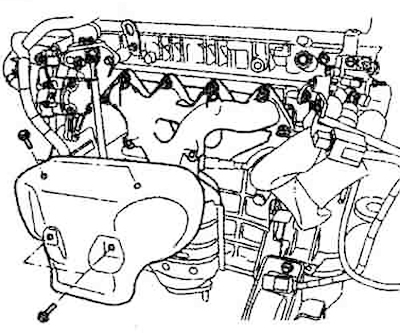

4. Remove the thermal insulation.

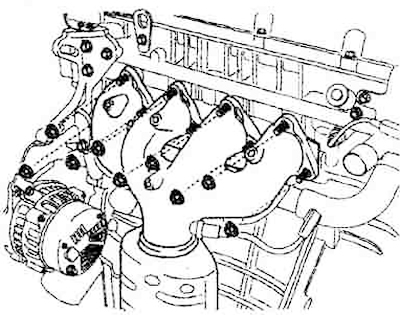

5. Remove the exhaust manifold.
Installation is carried out in the reverse order of removal.
After installation, do the following:
1. Adjust the throttle cable.
2. Fill the engine with engine oil.
3. Pour transmission oil into the gearbox.
4. Fill the cooling system with coolant.
5. Remove air from the cooling system.
6. Clean the battery terminals with sandpaper and connect them. Apply lubricant to the terminals to prevent corrosion.
7. Inspect the fuel lines for leaks.
8. Turn on the ignition (without starting the engine) to start the fuel pump for 1-2 seconds. During this time, pressure will build up in the fuel line. Repeat the operation 3-4 times and check the fuel lines again for fuel leaks.
