Removal and installation of the PBB module (Hyundai Tucson JM)

0

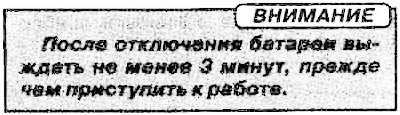

1. Disconnect the wire from the negative terminal of the battery.

1. Disconnect the wire from the…

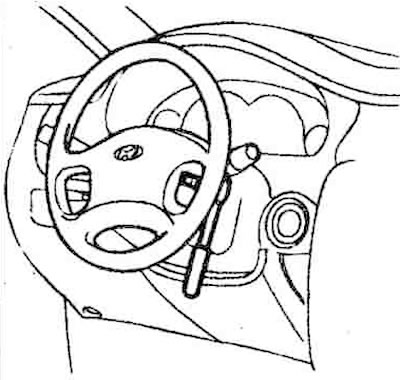

2. Using a hex key, loosen the bolts securing the steering wheel side protective cover and the airbag module.

2. Using a hex key, loosen the bolts…

3. Disconnect the driver airbag module connector.

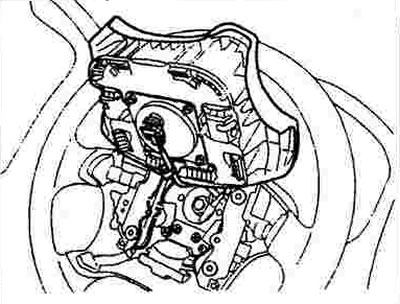

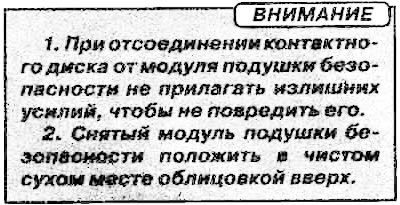

4. Remove the airbag module.

4. Remove the airbag module.

4. Remove the airbag module.

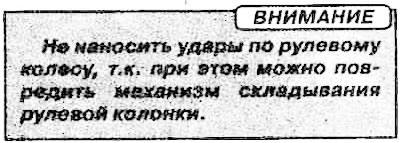

5. Remove the steering wheel.

5. Remove the steering wheel.

(The original text is available on the website: «HYUNDAIBOOK.RU»)

Installation should be carried out in the reverse order of removal.
