1. Rear flange
2. Pinion shaft
3. Gear housing
4. Gasket
5. Transfer case housing
6. Hypoid gear assembly
7. Transfer case cover
Removal and installation
1. Turn the ignition key to the OFF position and disconnect the negative cable from the battery.
2. Raise the vehicle on a lift.
3. Remove the front muffler.

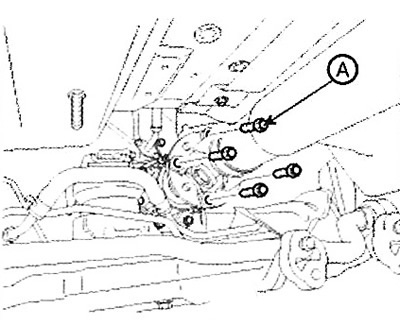

4. Turn away four fixing bolts and disconnect cardan shaft.
Note: Tightening torque: 49.0 - 68.6 Nm.
5. Disconnect the right drive shaft from the transfer case (passenger side).

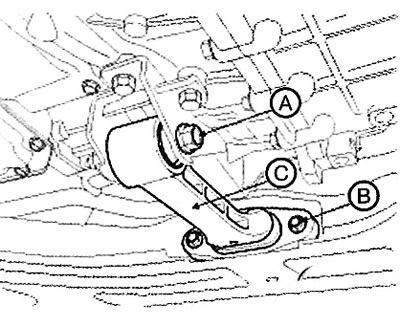

6. Turn away bolts (A, B) and remove the rear roller stop.
Note: Tightening torque:
- (A) 107.9- 127.5 Nm.
- (B) 49.0 - 63.7 Nm.

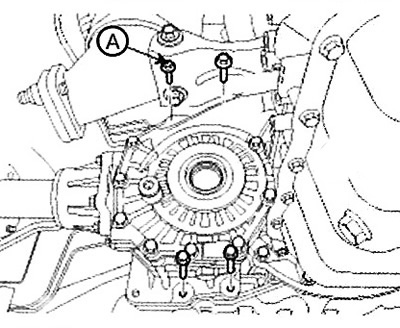

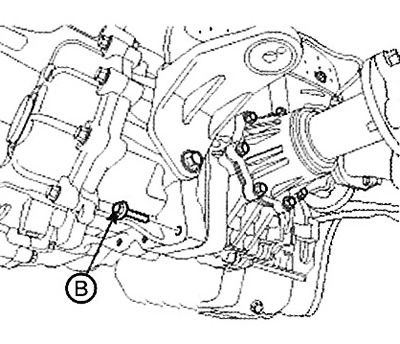

7. Unscrew the 4 top (A) and 1 bottom (IN) transfer case bolt.
Note: Tightening torque: (A, B) 60.8 - 65.7 Nm.
8. Support the transfer case with a jack and remove it with a lever.
9. Installation is made in an order, the return to removal.
Note:
When installing:

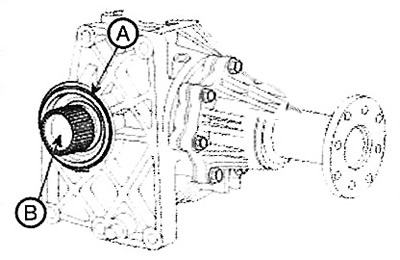

1. Be careful not to damage the O-ring (A). If damaged, O-ring (A) replace with a new one.
2. Lubricate the splines (IN) molybdenum grease.
