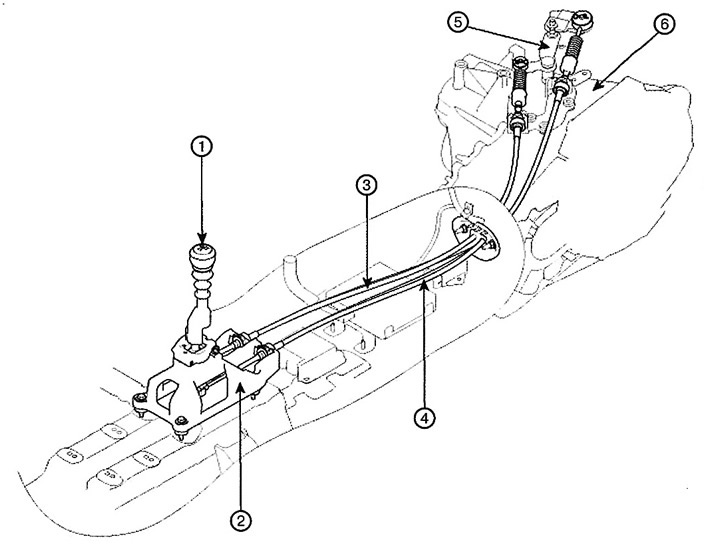

5 - speed manual transmission (M5GF1)
1. Gear shift knob
2. Gear lever assembly
3. Cable of a choice of transfers assy
4. Shift cable assembly
5. Shift cable assembly (gear side)
6. Gearbox assembly

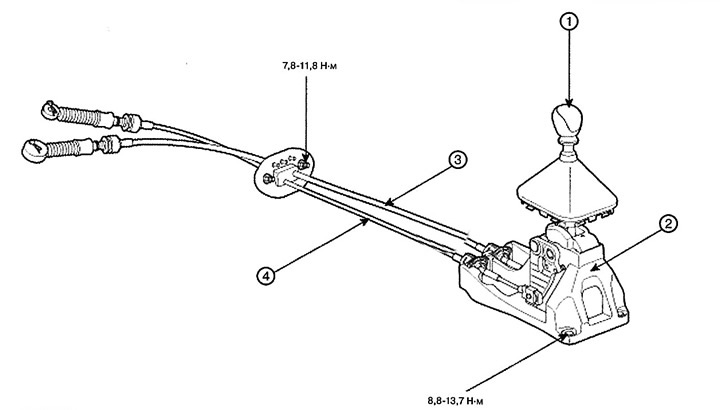

6 - speed manual transmission (M6GF2)
1. Gear shift knob
2. Gear lever assembly
3. Cable of a choice of transfers assy
4. Shift cable assembly
Withdrawal
1. Remove the center console.

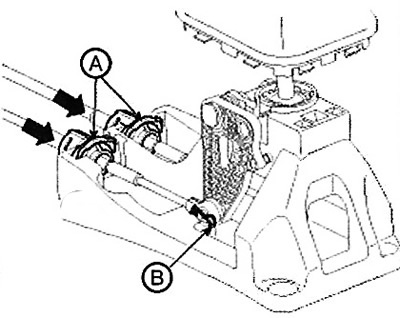

2. Remove cotter pin (IN) and remove the latch (A) from the gear selection cable assembly.

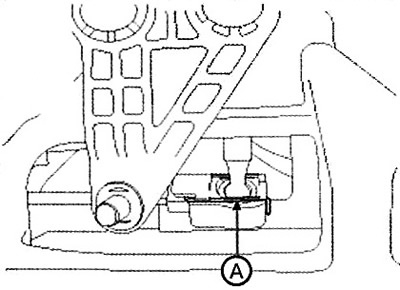

3. Remove the retainer (A) from the shift cable assembly.

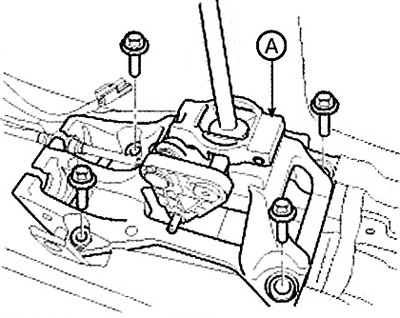

4. Remove the shift lever assembly (A).
Note: Tightening torque: 8.8-13.7 Nm

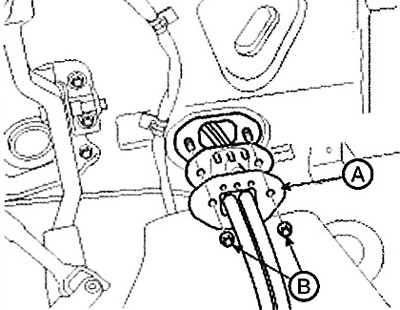

5. Loosen the nuts (IN) and remove the holder (A).
Note: Tightening torque: 7.8 - 11.8 Nm.

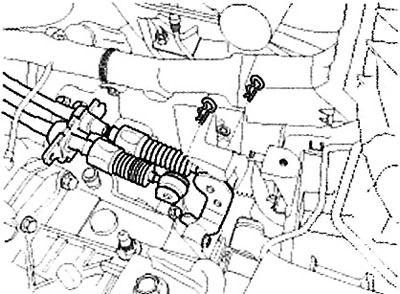

6. Remove a cable of a choice and a gear change in gathering from a transmission.
Checking the technical condition
1. Check for proper operation and damage to the gear selection cable.
2. Check the operation of the shift cable and the absence of damage.
3. Check the anthers for damage.
4. Inspect the boots for abrasion debris, restricted movement, and damage.
5. Check the spring for loose tension and wear.
Installation
1. Installation is carried out in the reverse order.

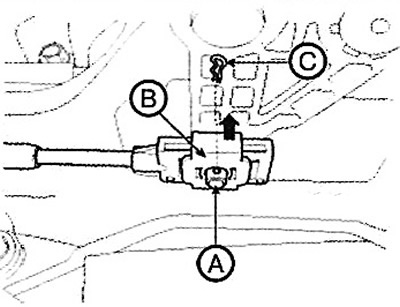

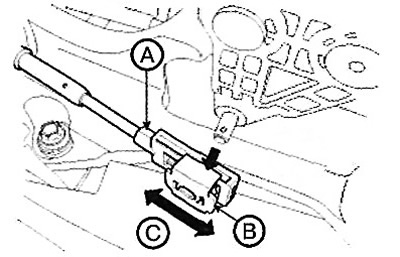

2. Move the slide lock (IN) guide element (A) in the direction shown in the figure.
Note: Adjust the position of the sliding lock on the shift lever by sliding the lock in the direction (WITH).

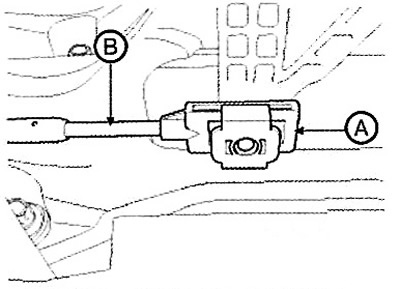

3. Install the guide element (A) on a rope (IN) gear shifting.
4. Install the sliding latch (IN) on pin (A) shift lever, then install the stud (WITH).
Note: Install the slide lock as shown in the illustration.
