Checking and assembling the gear shift lever (Hyundai Santa Fe CM)

0

Contents: Examination ⇓ Assembly ⇓

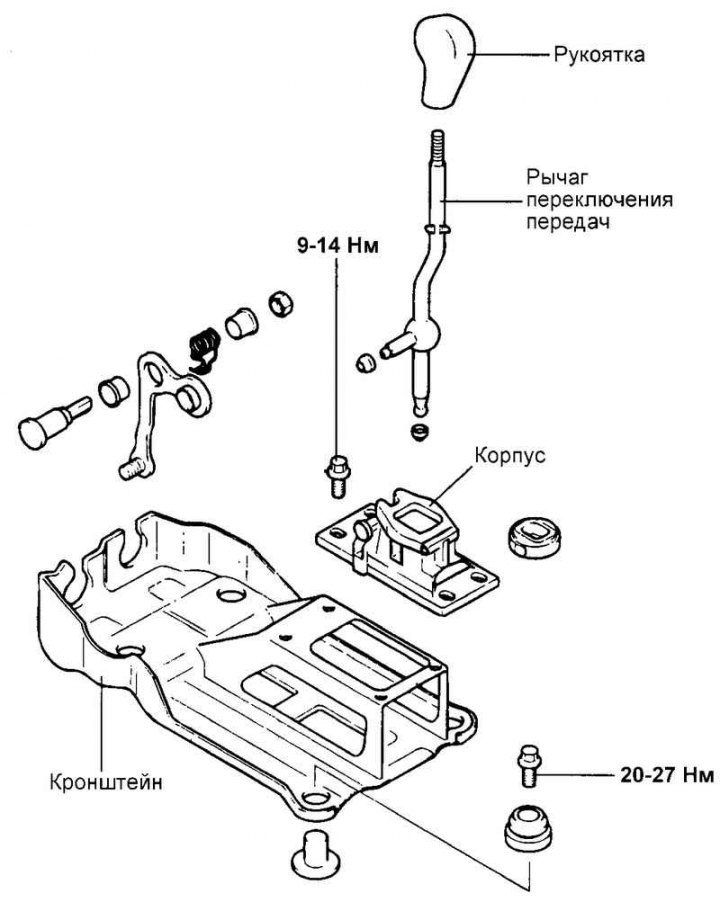

Fig. 3.45. Gear shift lever

Fig. 3.45. Gear shift lever

Examination

Check the bushings for wear or damage.

Check the lever return spring for wear, damage or deterioration.

Assembly

Apply general purpose grease to all moving parts and bushings.

Assembly is carried out in the reverse order of disassembly.
