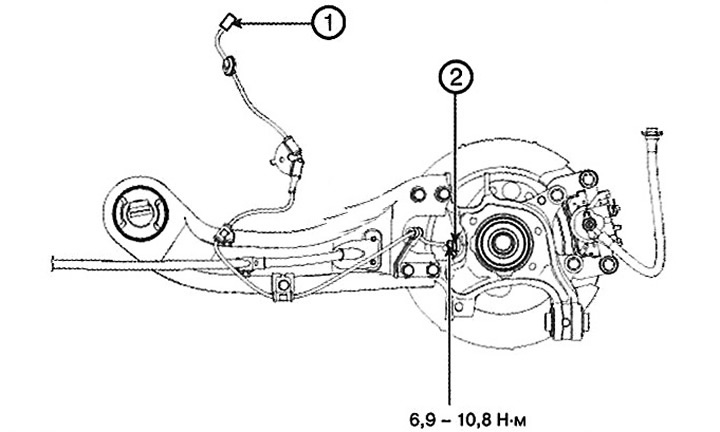

1. Sensor connector
2. Rear wheel speed sensor
Removal and installation

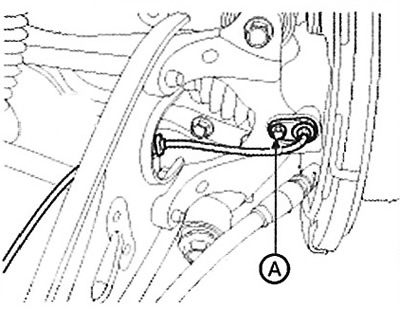

1. Remove the bolt (A) mounting the rear wheel speed sensor.
Note: Tightening torque: 6.9 - 10.8 Nm.
2. Remove the luggage compartment side trim and disconnect the rear wheel speed sensor connector.
3. Installation is carried out in the reverse order.
Checking the technical condition
The rear wheel speed sensors are checked in the same way as the front wheel speed sensors.
