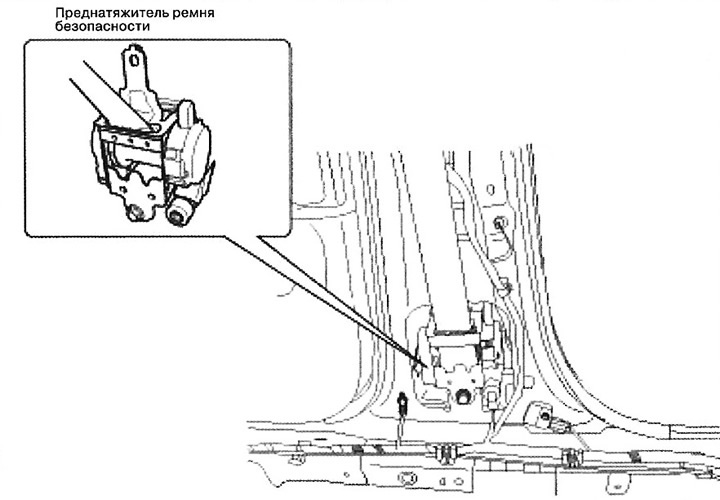

Seat belt pretensioners (Hyundai Tucson LM)

Removal

1. Before starting work, disconnect the negative battery cable and wait at least three minutes.

2. Unscrew the lower anchor bolt.

3. Remove the following parts:

A. Door anti-scuff strip.

B. Central pillar trim.

4. Unscrew the upper anchor bolt.

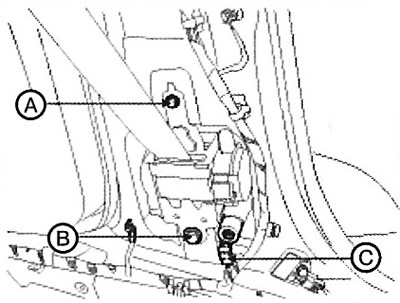

5. Disconnect the seat belt pretensioner (SBP) connector.

[The text is provided by the web resource HyundaiBook.ru]



6. Loosen the mounting bolt and remove the pretensioner.

Installation

1. Remove the ignition key from the lock.

2. Before starting work, disconnect the negative battery cable and wait at least three minutes.

3. Install the seat belt pretensioner (SBP) and tighten the bolt.

Note: Tightening torque: Bolt "B": 39.2 - 53.9 Nm.

4. Connect the pretensioner connector.

5. Tighten the top anchor bolts.

Note: Tightening torque: 39.2 - 53.9 Nm.

6. Install the following parts:

A. Central pillar trim.

B. Door anti-scuff strip.

7. Tighten the lower anchor bolts.

Note: Tightening torque: 39.2 - 53.9 Nm.

8. Connect the negative battery cable.

9. After installing the pretensioner, check that it functions correctly.

Turn the ignition switch to the "ON" position, the SRS indicator light should come on for approximately 6 seconds and then go out.
