Seat belt replacement
Attention. Be careful not to damage the retractor when installing the seat belt.
1. Remove the rear seat.
2. Remove the rear door anti-seize trim.

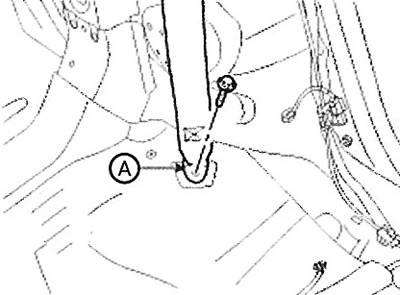

3. Turn away a bolt of fastening and remove the lower fastening (A) rear seat belt.
Note: Tightening torque: 39.2 - 53.9 Nm.
4. Remove the fasteners.

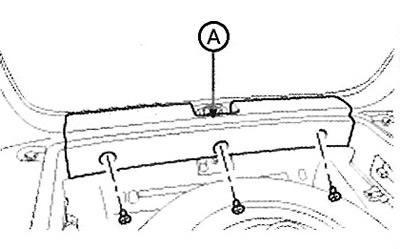

5. Remove the cross member trim (A) using a screwdriver or a special puller.
Note: To prevent damage to the cladding when using a flat-blade screwdriver as a lever, wrap the screwdriver with electrical tape. Tape off adjacent parts that require protection as well.

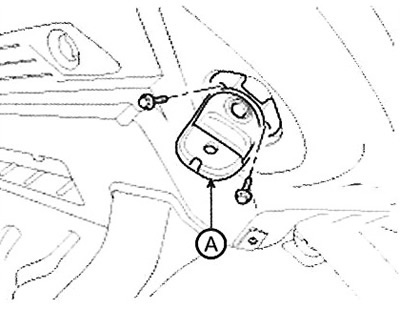

6. Turn away fixing bolts and remove an arm (A) rear seat.

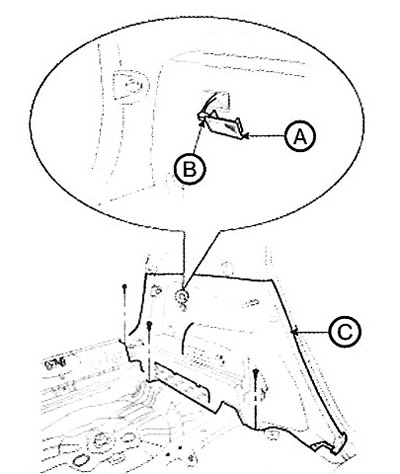

7. Disconnect the lamp (A).
8. Disconnect the connector (IN).
9. Turn away fixing screws, then remove lateral facing (WITH) baggage compartment.

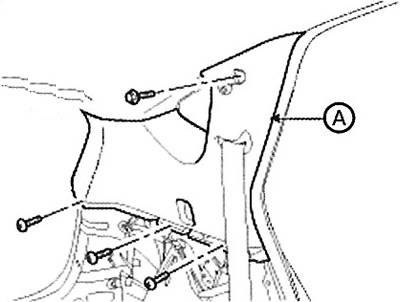

10. Turn away a fixing bolt and screws, then remove facing (A) rear rack.

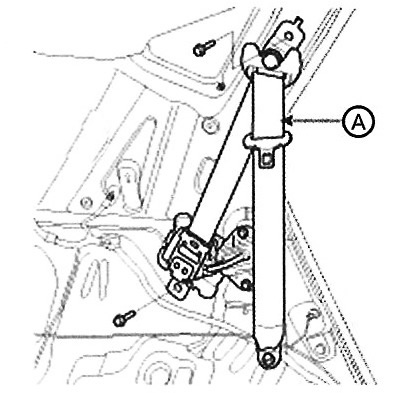

11. Turn away bolts of fastening and remove a back seat belt (A).
Note: Tightening torque: 39.2 - 53.9 Nm.
12. Installation is carried out in the reverse order.
Note: Replace damaged fasteners.
Replacing the seat belt buckle
1. Remove the rear seat.

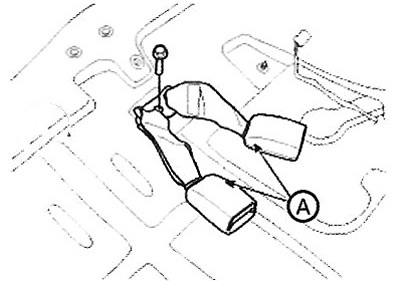

2. Loosen the mounting bolt and remove the buckle (A) seat belt.
Note: Tightening torque: 39.2-53.9 Nm
3. Installation is carried out in the reverse order.
