Forward collision sensor
Withdrawal
Attention.
Airbag removal must follow the precautions/techniques previously described.
Before disconnecting the front impact sensor connector, disconnect the connector (connectors) front airbag.
Do not turn on the ignition or connect the battery while replacing the forward collision sensor.
1. Before starting work, disconnect the negative cable from the battery and wait at least three minutes.
2. Disconnect the head impact sensor connector.
3. Turn away a nut of fastening of the gauge of frontal collision.
4. Remove the sensor.
Installation
Attention. Do not turn on the ignition or connect the battery while replacing the forward collision sensor.
1. Install a new front impact sensor.
2. Tighten the sensor mounting nut.
Note: Tightening torque: 7.0 - 9.0 Nm.
3. Connect a forward collision sensor connector.
4. Connect the negative battery cable.
5. After installing the front collision sensor, check for correct operation.
Turn the ignition key to position "ON", the SRS warning light should come on for about 6 seconds and then turn off.

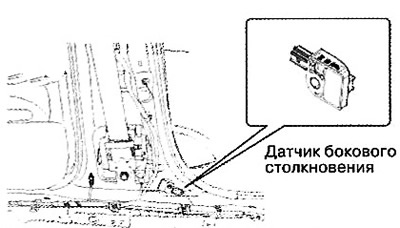

Side impact sensor
Withdrawal
1. Before starting work, disconnect the negative cable from the battery and wait at least three minutes.
2. Loosen the bottom anchor bolt
3. Remove the door anti-seize pad.
4. Remove facing of the central rack.
5. Disconnect the side impact sensor connector.
6. Turn away a bolt of fastening of the gauge of lateral collision and remove the gauge.
Installation
Attention. Do not turn on the ignition or connect the battery while replacing the side impact sensor.
1. Install a new side impact sensor, tighten the mounting bolt and connect the connector.
Note: Tightening torque: 7.0 - 9.0 Nm.
2. Establish facing of the central rack.
