Contents: Water pump ⇓ Thermostat ⇓
Water pump
1. Install the water pump (A) and new gasket (B).

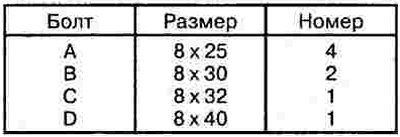

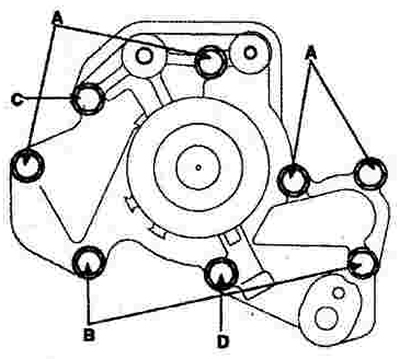

2. Tighten the eight bolts to a torque of 15-22 Nm.
 |
 |
3. Install the drive belt intermediate pulley.
4. Install the camshaft drive belt.
5. Install the accessory drive belt.
6. Fill the system with coolant.
7. Start the engine and check the cooling system for leaks.
8. Recheck the coolant level.
Thermostat
1. Check that the thermostat valve flange is seated correctly in the thermostat housing socket. If the thermostat (B) is not installed correctly, its lower part will touch the rib inside the supply pipe, which will cause the thermostat to malfunction.
2. Install the inlet manifold (A) with a new gasket. Tighten the bolts to 17-20 Nm.
3. Connect the lower hose.
4. Fill the cooling system.
5. Start the engine and check the cooling system for leaks.
