5-speed manual transmission
1. Gasket
2. Clutch hydraulic hose
3. Bleeding nipple
4. Clutch slave cylinder
5. Return spring
6. Piston
7. Dust cover
8. Rod
9. Connecting bolt
10. Valve plate
11. Valve spring
12. Cotter pin
Removal and installation

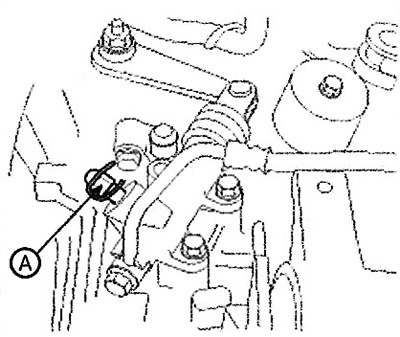

1. Drain the oil through the bleed nipple (A).
The material is republished from the web portal HYUNDAIBOOK.ru
2. Clamp the clutch hydraulic hose between the slave cylinder and the clutch hydraulic line.
3. Remove the slave cylinder by unscrewing its mounting bolt.
4. Install the new clutch slave cylinder.
