Note: If the vehicle is equipped with an immobilizer or push-button start system, perform the "Key Learning" procedure at the same time ("Key Teaching").
1. Turn the ignition key to the OFF position and disconnect the negative battery cable.

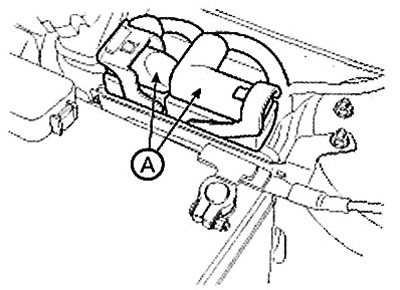

2. Disconnect the connector (A) from the transmission control unit.
A6MF1
3. Remove the battery.

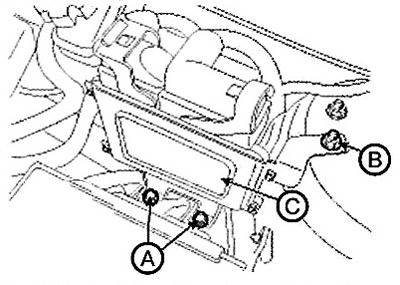

4. Loosen the mounting bolts (A) and mounting nuts (B), and then remove the transmission control unit (C).
The original version is stored on the website: HyundaiBook.ru
Note: Tightening torque: (A): 21.6 - 32.4 Nm.
A6LF2

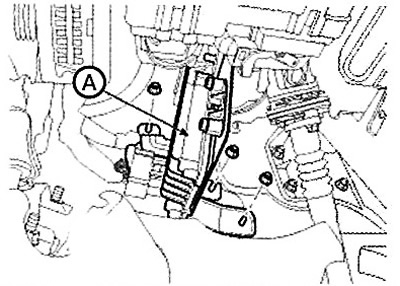

5. Unscrew the 3 mounting nuts and remove the gearbox control unit (A).
Note: Tightening torque: 7.8 - 9.8 Nm.
