1. Selector lever
2. Gearbox selector assembly
3. Cable of a choice of operating modes of a transmission
4. Hand control lever
Removal and installation

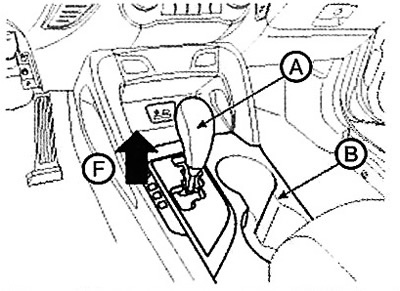

1. Remove the handle (A) shift lever in direction F, then remove the top cover (IN) console.
2. Remove the center console.

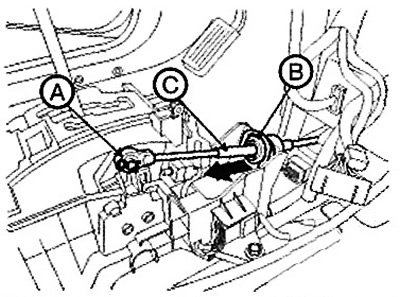

3. Remove the retainer (A) and collar (IN), then remove the cable (WITH) gear shifting.

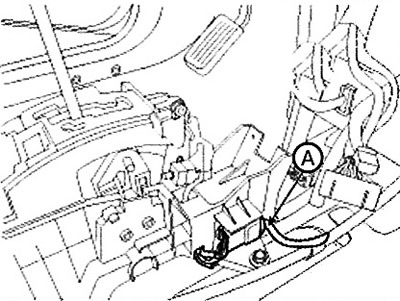

4. Disconnect the connector (A) sport mode switch.

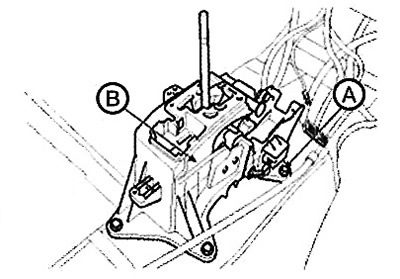

5. Remove four bolts (A) and remove the shift lever (IN) assembled.
Note: Tightening torque: 8.8 - 13.7 Nm.

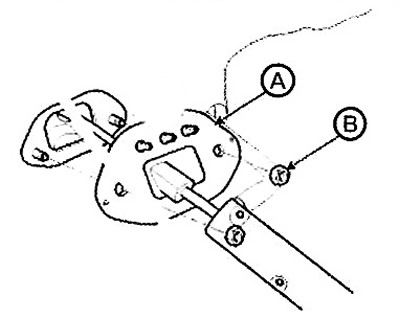

6. Loosen the nuts (IN), remove the holder (A) and control cable.
Note: Tightening torque: 7.8-11.8 Nm
7. Disconnect a cable from an arm from outside a transmission.
8. Disconnect the shift cable in the passenger compartment.
9. Installation is made in an order, the return to removal.
Note: Move the passenger compartment lever and the manual control lever to the position «N».
Checking the technical condition
1. Check the operation of the cable for selecting operating modes and that it is not damaged.
2. Check the anthers for damage.
3. Check the dust boots for wear, rubbing, binding, limited movement, or damage.
4. Check the spring for loose tension and wear.
Shift Cable Adjustment
1. Move the lever in the passenger compartment and the manual control lever to the position «N».
2. Connect the mode selection cable to the gearshift lever installed in the passenger compartment.

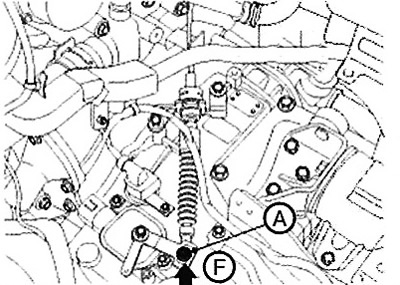

3. To eliminate the play, move the cable in the direction «F».
4. Tighten the adjusting nut (A).
Note: Tightening torque: 7.8-11.8 Nm
5. Make sure that each position of the manual control lever corresponds to the position of the lever in the passenger compartment.
