Diesel Engine Oil Level Sensor (Hyundai Tucson LM)

Removal and installation

1. Drain the engine oil.

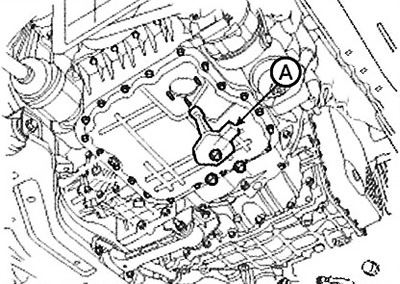

2. Disconnect the connector and remove the oil level sensor (A) from the oil pan.

Note: Tightening torque: 8.8 - 9.8 Nm.

(The publication is borrowed from the website: HyundaiBook.ru)

3. Installation is performed in the reverse order of removal. A new gasket must be used.
