Contents: Petrol engines ⇓ Diesel engines ⇓
Petrol engines

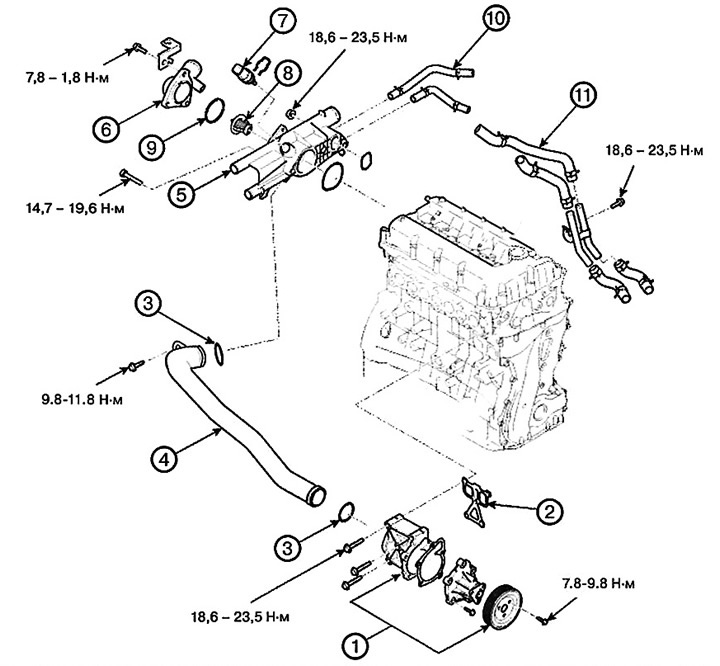

1. Water pump
2. Water pump gasket
3. Sealing ring
4. Coolant inlet pipe
5. Coolant temperature control unit
6. Coolant inlet pipe
7. Coolant temperature sensor
8. Thermostat
9. Thermostat gasket
10. Cooling system hose from the throttle body
11. Oil cooler hose and pipe assembly

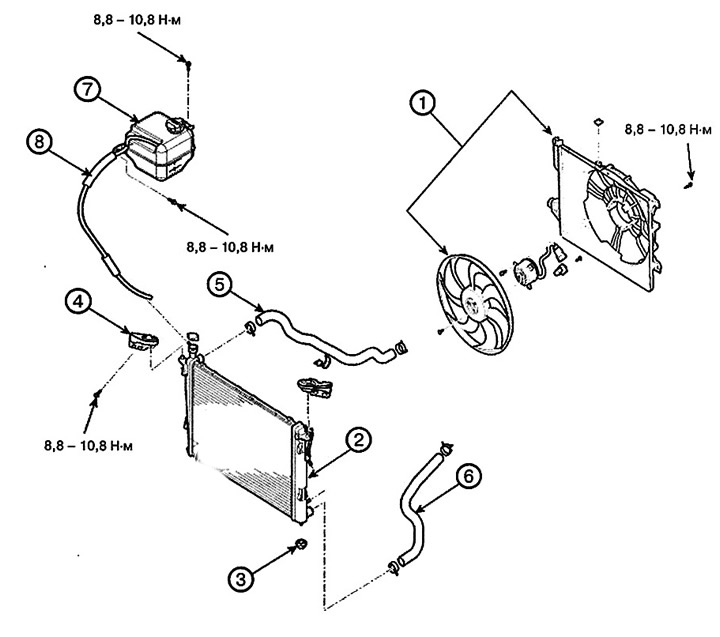

1. Cooling fan assembly
2. Radiator
3. Lower insulator
4. Radiator mounting bracket
5. Upper radiator hose
6. Lower radiator hose
7. Expansion tank
8. Steam outlet hose
Diesel engines
1. Air conditioner condenser
2. Radiator
3. Upper radiator mounting bracket
4. Transmission oil cooler hose
5. Lower radiator hose
6. Upper radiator hose
7. Fan
8. Fan motor
9. Cooling fan shroud
10. Expansion tank
11. Lower radiator mounting bracket
12. Air damper

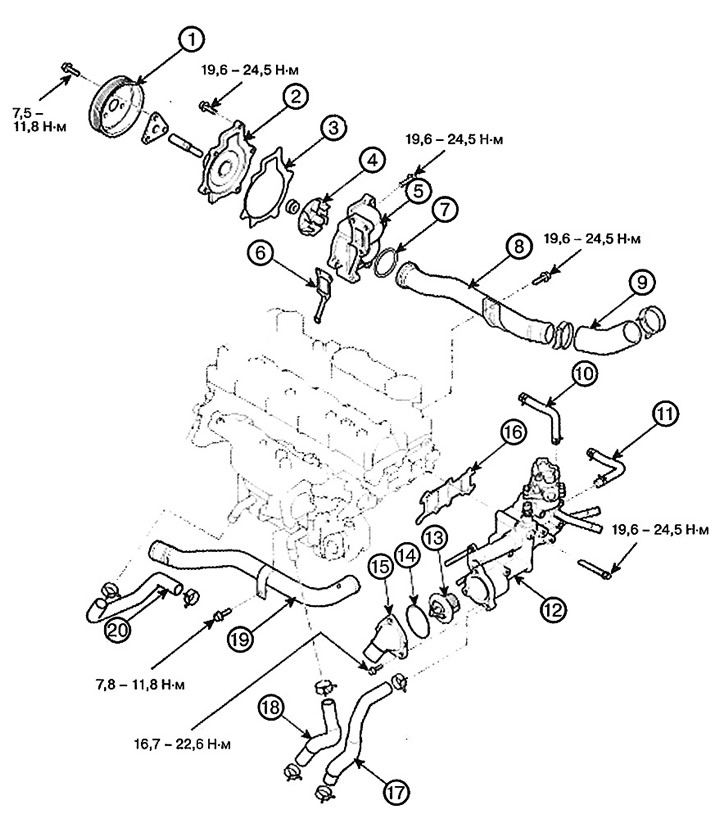

1. Water pump pulley
2. Water pump housing
3. Water pump gasket
4. Water pump impeller
5. Water pump cover
6. Water pump cover gasket
7. Coolant inlet pipe sealing ring
8. Coolant inlet pipe
9. Coolant inlet hose
10. Turbocharger coolant inlet hose
11. Turbocharger coolant outlet hose
12. Thermostat housing and EGR assembly
13. Thermostat
14. Thermostat sealing ring
15. Coolant inlet pipe
16. Thermostat housing and EGR assembly gasket
17. Oil cooler return hose
18. Oil cooler hose
19. Coolant outlet pipe
20. EGR cooler hose
