Note: To prevent damage to the cladding when using a flat-blade screwdriver as a lever, wrap the screwdriver with electrical tape. Tape also adjacent parts that require protection. Wear gloves to protect your hands from injury.

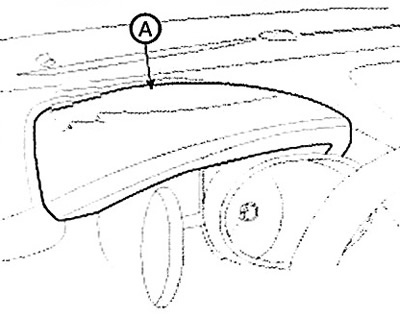

1. Remove the panel (A) lining of the instrument cluster with a screwdriver or a special puller.

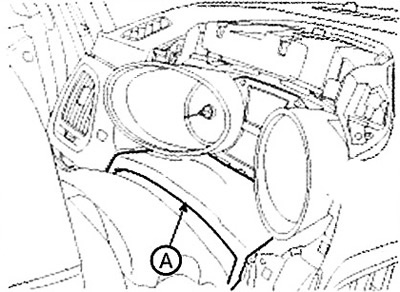

2. Remove the bottom panel (A) lining of the instrument cluster with a screwdriver or a special puller.

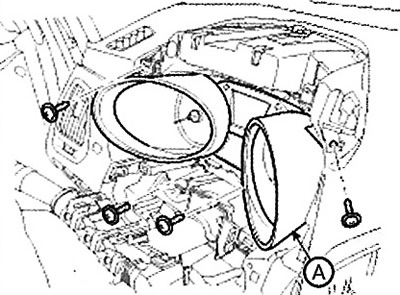

3. Turn away screws of fastening and remove a combination of devices (A).

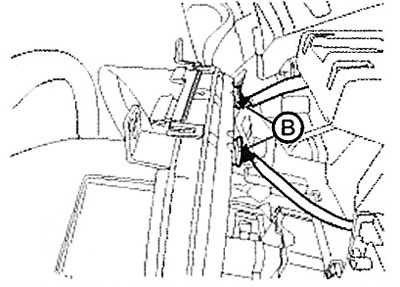

4. Disconnect connectors (IN).
5. Installation is carried out in the reverse order.
Note:
- Make sure the connectors are connected correctly.
- Replace any damaged fasteners.
