Replacing the bottom panel (Hyundai Tucson LM)

0

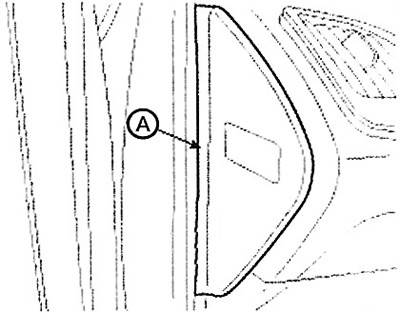

1. Remove the side cover (A) of the instrument panel using a screwdriver or a special puller.

1. Remove the side cover (A) of the…

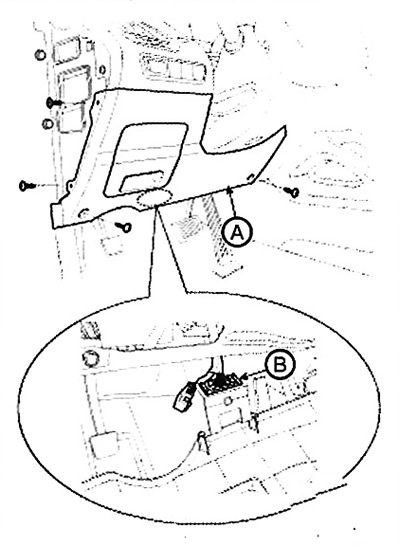

2. Loosen the mounting screws and remove the lower part (A) of the instrument panel.

3. Disconnect the diagnostic connector (B).

3. Disconnect the diagnostic connector…

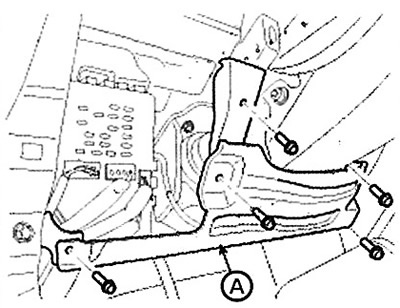

4. Loosen the mounting bolts and remove the reinforcement panel (A).

4. Loosen the mounting bolts and remove…

5. Installation is carried out in the reverse order of removal.
