Note:
Equipment used to remove HFC-134a refrigerant (R-134a) from air conditioning systems must be certified and meet the requirements of UL and SAE J2210.
In the event of an accidental release of refrigerant, ventilate the room before resuming work.
Additional health and safety information can be obtained from the refrigerant and oil manufacturers.
Attention.
Vapors of oil or refrigerant used in the air conditioning system may cause eye or nasal irritation.
Be careful when connecting maintenance equipment.
Do not inhale refrigerant or vapors.

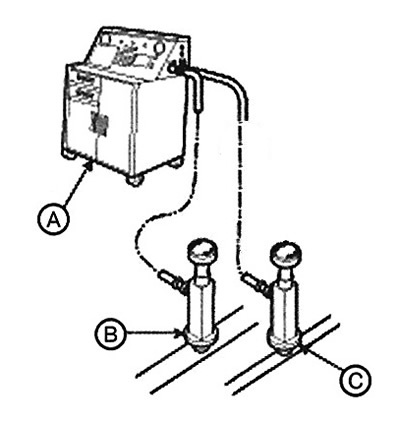

1. Connect the drain, recycling and refill system (A) R-134a refrigerant to the high (IN) and low (WITH) pressure as shown in the figure and in accordance with its manufacturer's instructions.
2. Measure the amount of oil removed from the A/C system after the pumpdown process is complete. Be sure to charge the same volume of oil into the air conditioning system before charging it with refrigerant.
