2. Clean the working surface of the brake linings from foreign objects and install the brake linings with wear indicator and sidewalls.

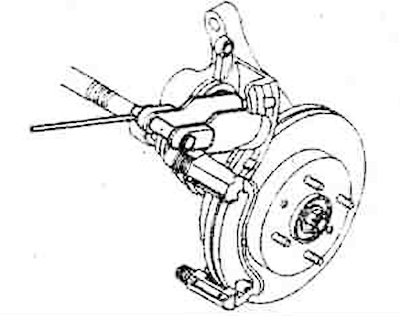

3. Move the piston inside the cylinder using a special tool (09581-11000).

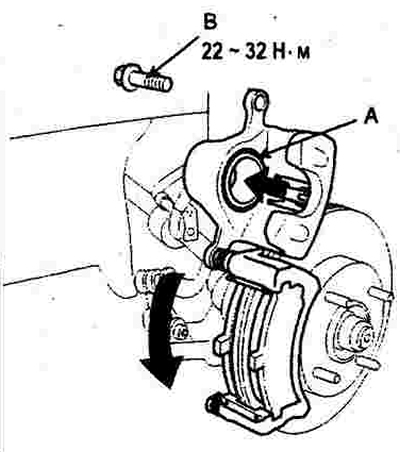

4. Place the caliper in working position and tighten the guide rod bolt to 22-32 Nm.
5. After installation, check the brake system for leaks. If found, eliminate.
6. Press the brake pedal several times to make sure the brakes are working and test drive the vehicle.
Note. Adjust the brake pedal travel if necessary.
