Air conditioning system diagnostics (Hyundai Tucson JM)

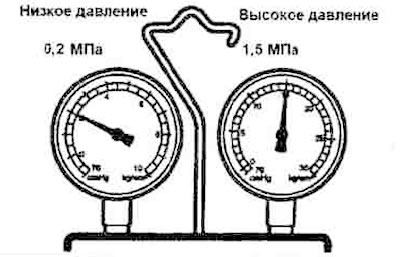

During normal operation of the air conditioning system, the low-pressure gauge readings will be 0.15-0.25 MPa, the high-pressure gauge readings will be 1.37-1.57 MPa. The temperature on the intake manifold should be 30-35°C, with a crankshaft rotation speed of 1500 rpm. In this case, the mode selection switches should be in the following positions: air cooling - maximum, air flow speed - maximum.
