2. Compare the change in the sensor output voltage with the standard (shown below).
- V: 590mV - 840mV
- V: 1.18V- 1.68V
- Frequency range: 1 ~ 2,000Hz
2. Compare the change in the sensor output voltage with the standard (shown below).
Checking the technical condition of speed sensors (Hyundai Tucson JM)
0

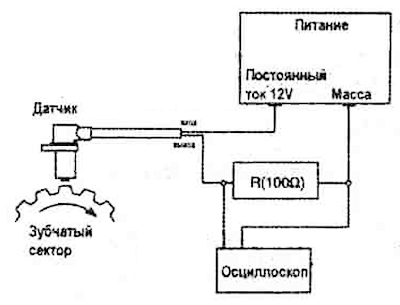

1. Connect the oscilloscope to the speed sensor connectors as shown in the diagram below and check the voltage between the sensor terminals by rotating the wheel by hand.

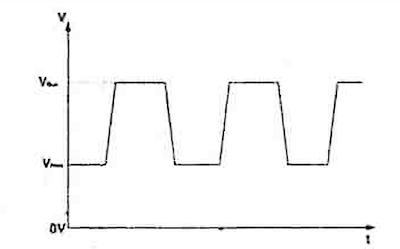

2. Compare the change in the sensor output voltage with the standard (shown below).
2. Compare the change in the sensor output voltage with the standard (shown below).
