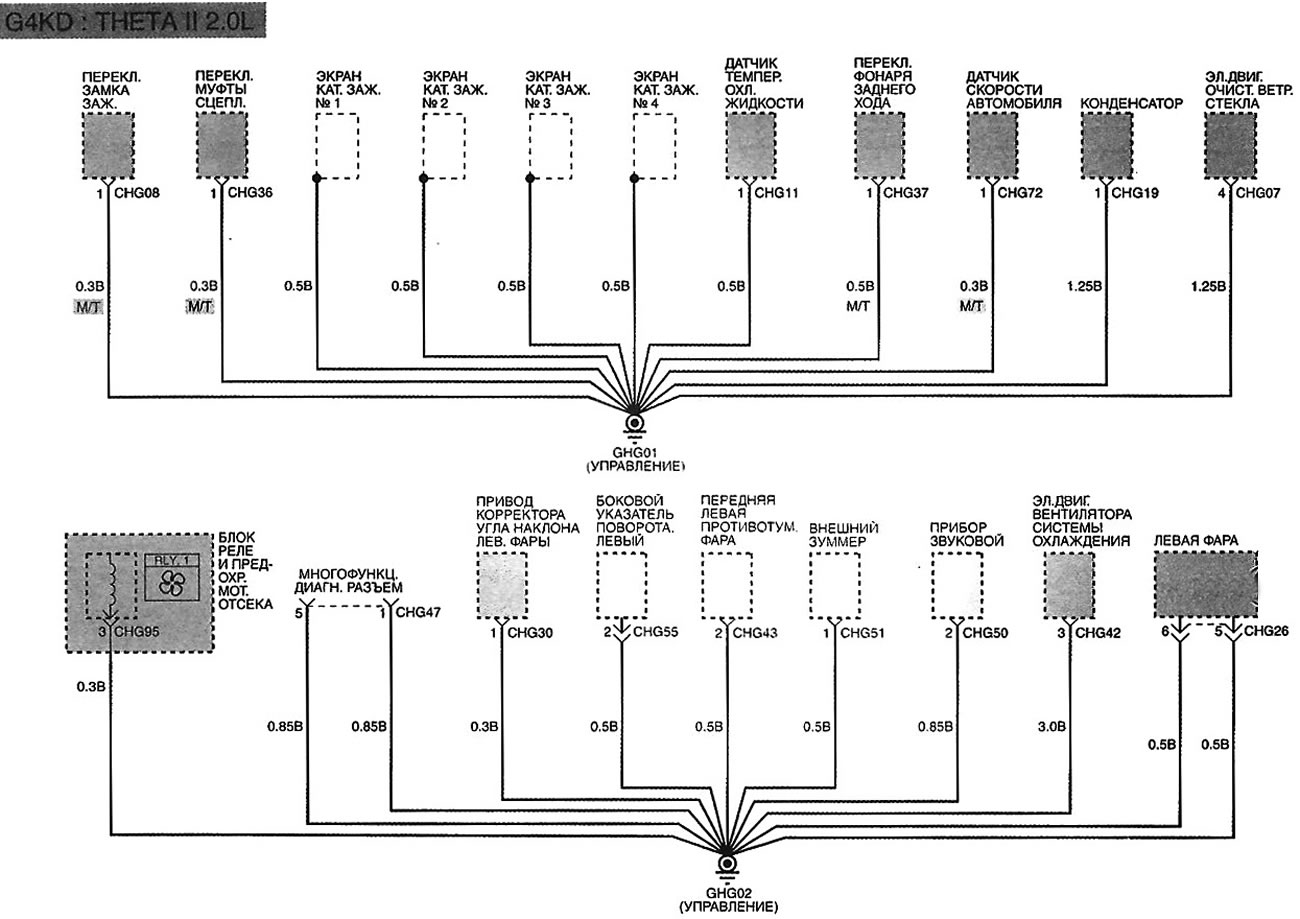

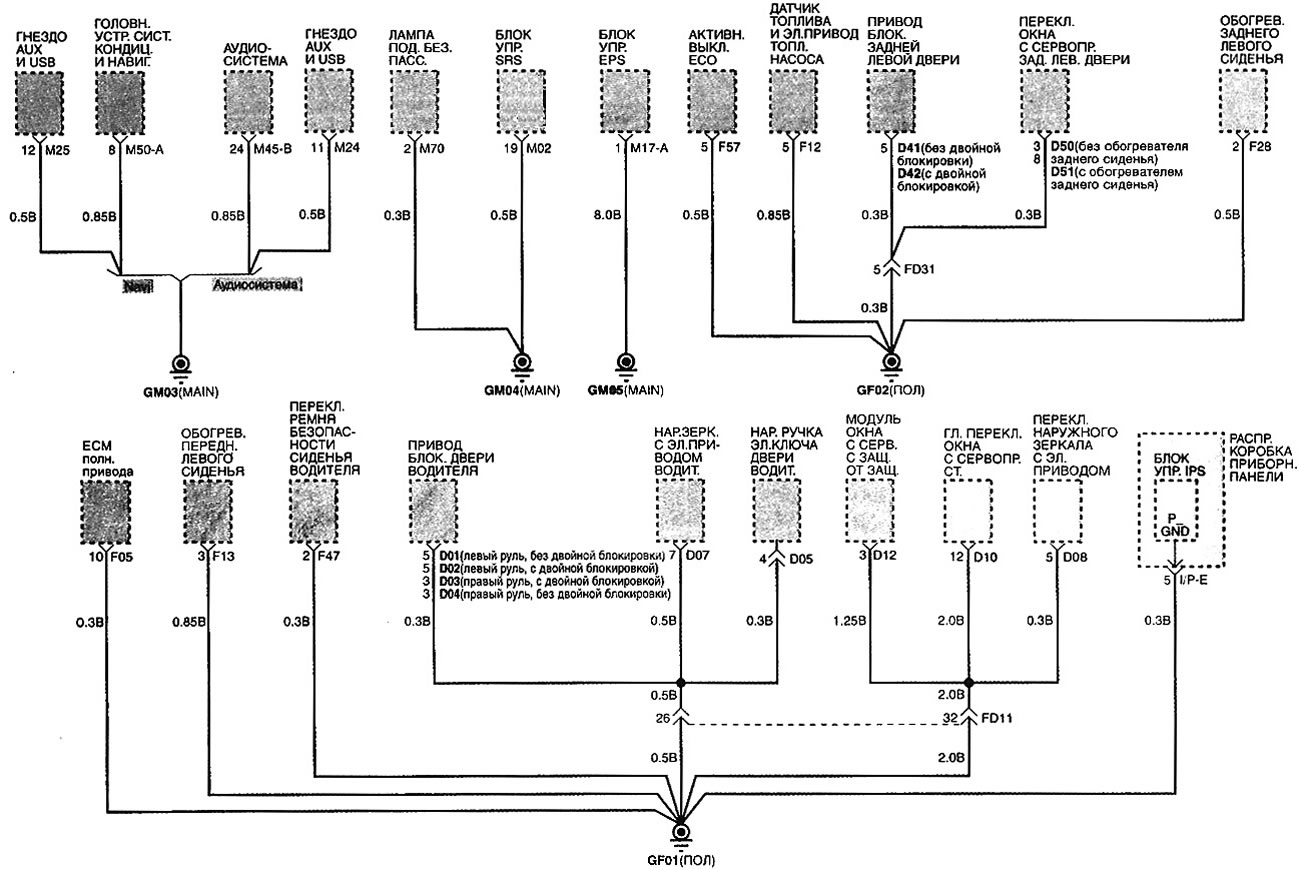

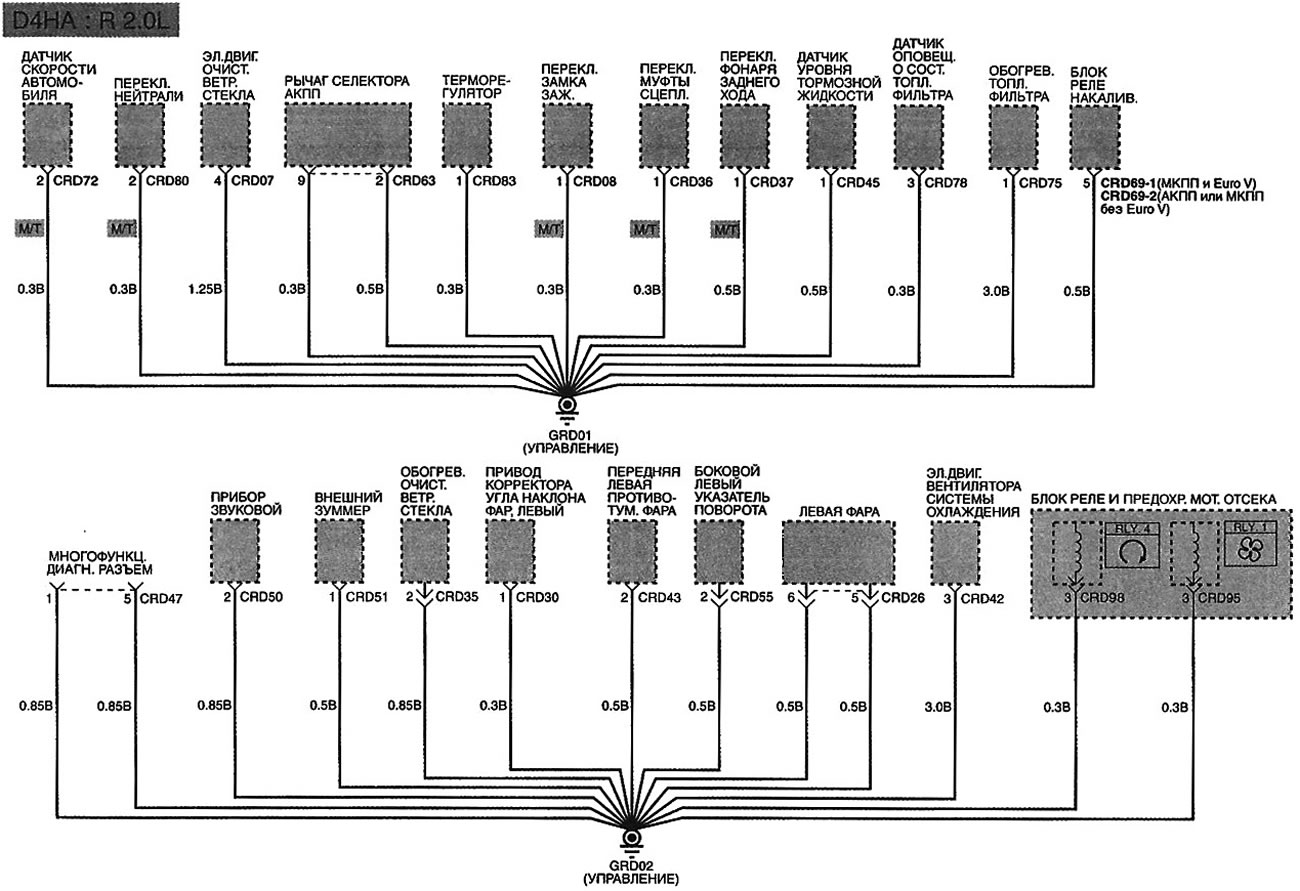

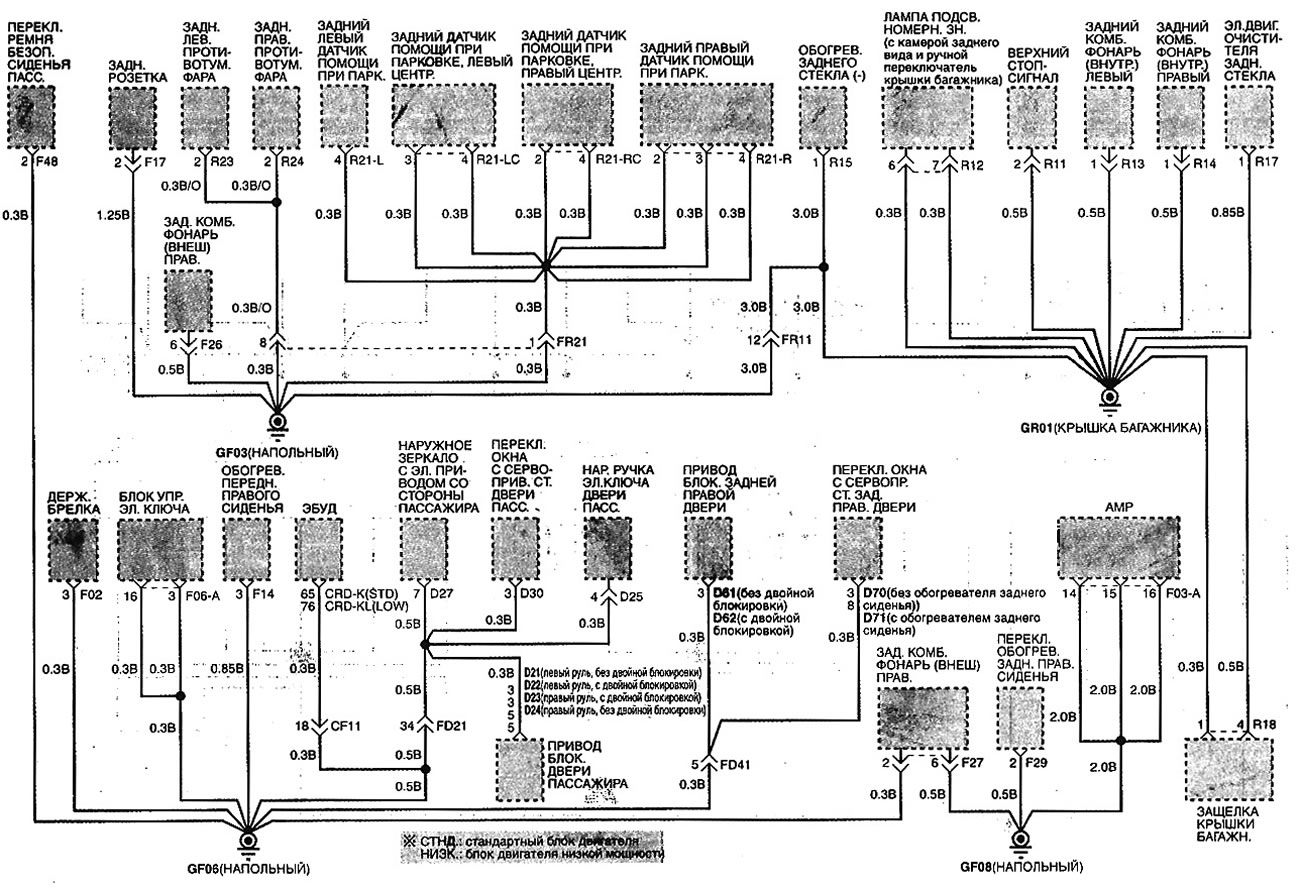

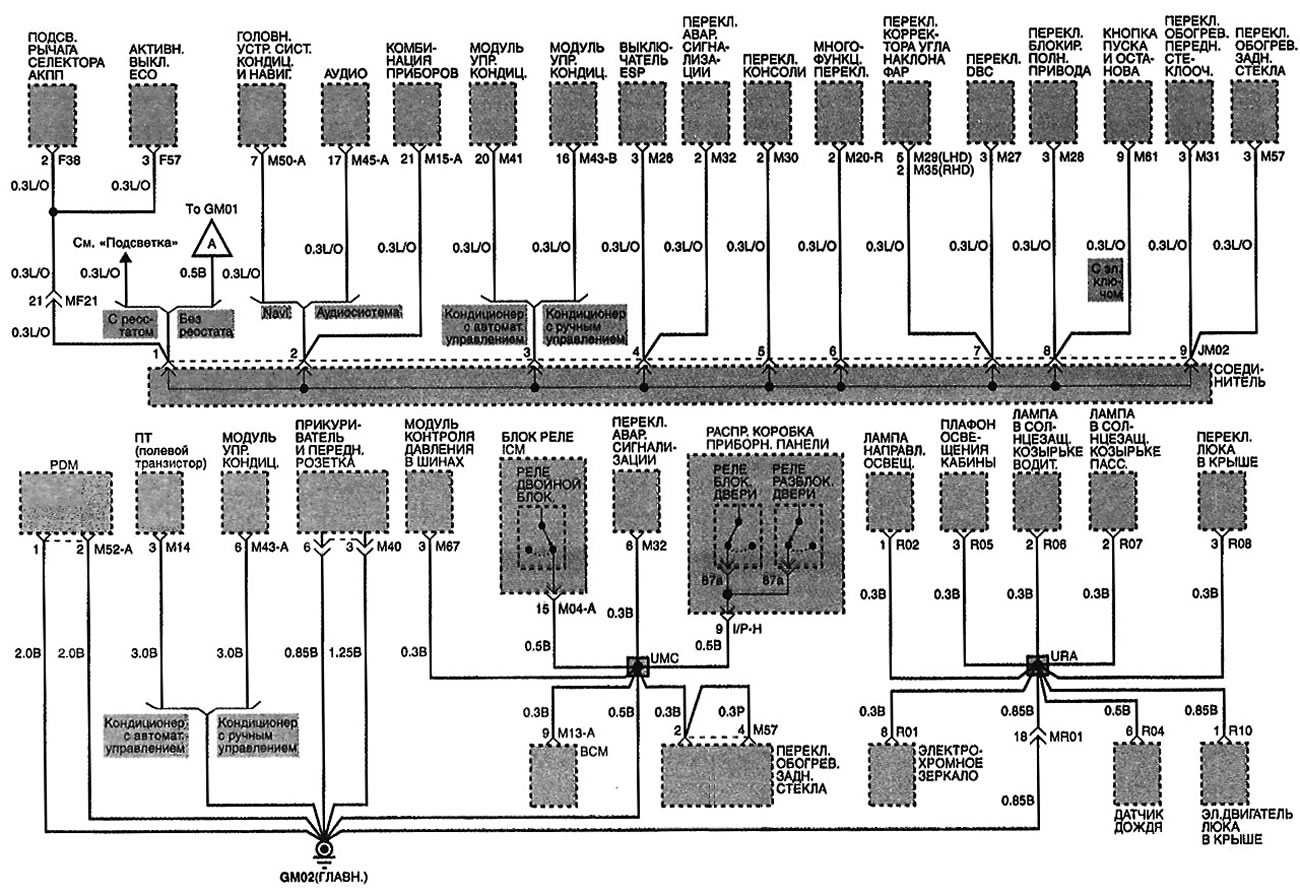

Electrical diagram of mass points (Hyundai Tucson LM)
0
This article is available at russian, bulgarian, belarusian, ukrainian, serbian, croatian, romanian, polish, slovak, hungarian
