Removal and installation of the vacuum amplifier of brakes.

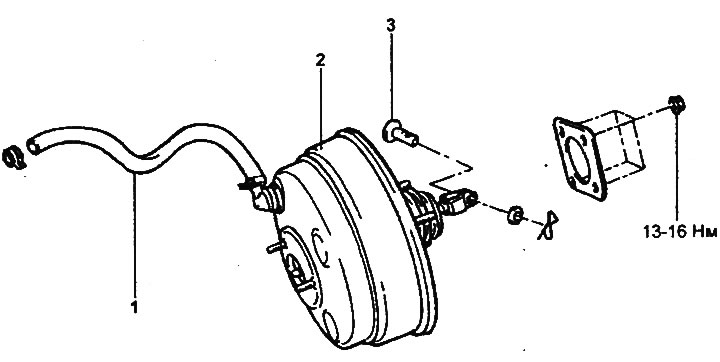

1 - vacuum hose, 2 - booster assembly, 3 - fork axle.
Withdrawal
1. Remove the brake master cylinder (see section "Master brake cylinder").
2. Disconnect the vacuum hose.
3. Remove the cotter pin and washer, remove the fork axle and disconnect the stem fork from the brake pedal.
4. Turn away nuts of fastening of the amplifier and remove the amplifier in gathering.
- Tightening torque: 13-16 Nm
Note: Do not disassemble the amplifier.
Installation
1. Installation of the vacuum booster is carried out in the reverse order of removal, the tightening torques of the bolts and nuts are indicated in the text of the description of the removal procedure and in the assembly drawing "Removal and installation of the vacuum amplifier of brakes".
2. After installation, fill the reservoir with brake fluid, then bleed the brake system.
