2. Raise and lower the parking brake lever several times with a force of 196 N.

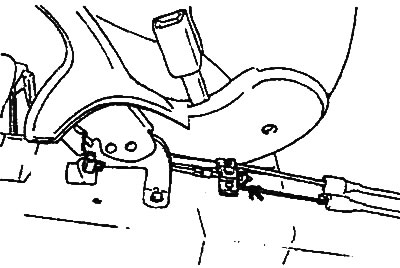

3. Tighten the parking brake cable adjusting nut.
4. Raise the parking brake lever with a force of 196 N and count the number of clicks.
- Parking brake lever travel: 8-9 clicks
5. If the stroke of the parking brake lever does not correspond to the nominal value, adjust it by turning the adjusting nut.

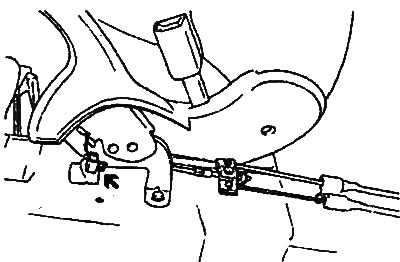

6. Check that the parking brake indicator is working properly. Replace it if necessary.
7. After adjustment, make sure that when the parking brake lever is lowered, the shoes do not touch the brake disc/drum.
