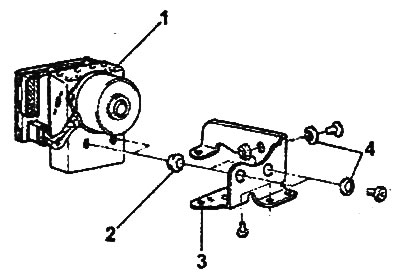

Removing the ABS/EBD/TCS control unit.
1 - ABS/EBD/TCS control unit (hydraulic unit and electronic control unit assembly), 2 - spacer, 3 - hydraulic unit bracket, 4 - washers.
Removal
Note: The operating temperature of the ABS/EBD/TCS control unit is -40-110°C
- operating voltage of the ABS/EBD/TCS control unit: 10-16 V

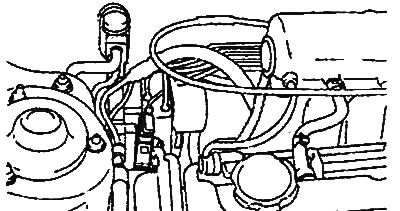

1. Disconnect the connectors from the electronic control unit and the ABS pump electric motor.

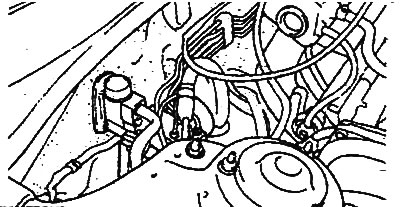

2. Loosen the nuts and disconnect the brake pipes from the hydraulic unit.
- Tightening torque: 13-17 Nm

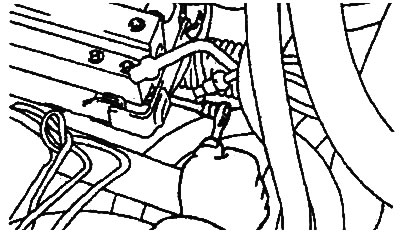

3. Loosen the control unit mounting bolts and remove the unit as a whole.
- Tightening torque: 8-10 Nm
Attention:
- Never attempt to disassemble the control unit.
- Do not drain the brake fluid from the control unit.
- Do not turn the control unit upside down, store it in an upright position.
- To store and transport the control unit, it is necessary to plug the holes with plugs.
Installation
The hydraulic unit is installed in the reverse order of removal; the tightening torques for the bolts and nuts are specified in the text describing the removal procedure.
