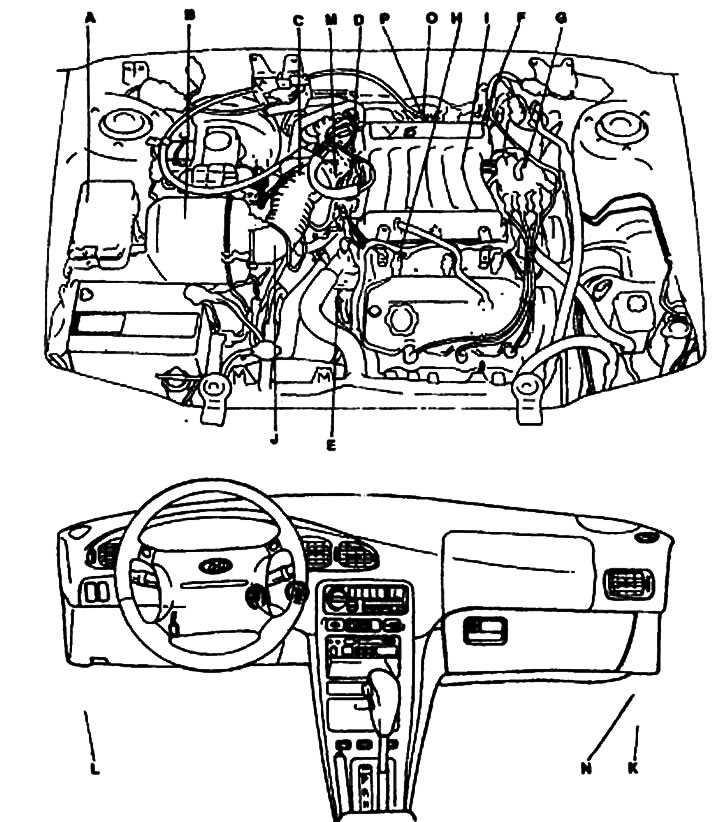

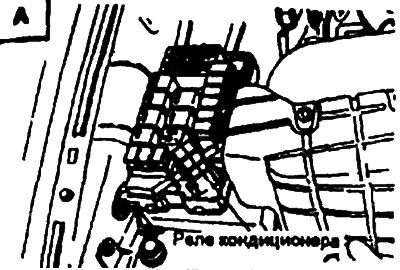

A. Air conditioning system relay.

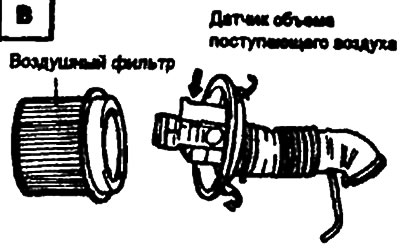

B. Intake air flow sensor (VAF sensor).

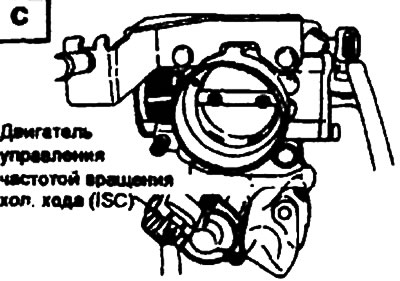

C. Idle Speed Control (ISC) motor.

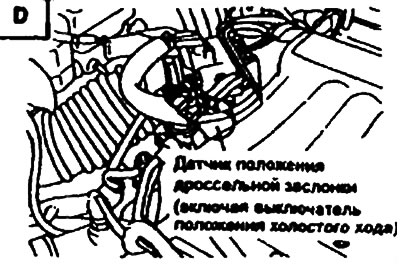

D. Throttle position sensor (TP sensor), and idle air switch.

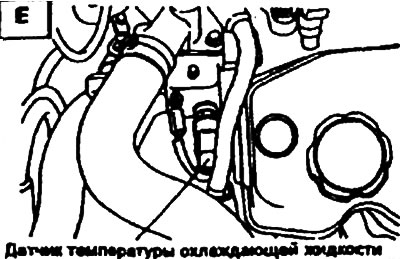

E. Engine coolant temperature sensor (ECT sensor).

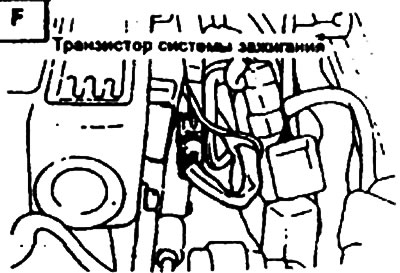

F. Ignition system transistor.

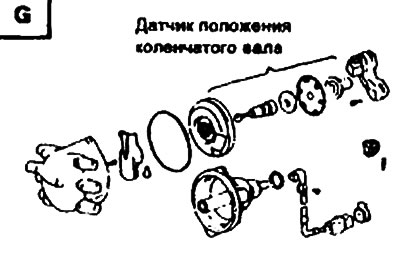

G. Crankshaft position sensor (CKP sensor).

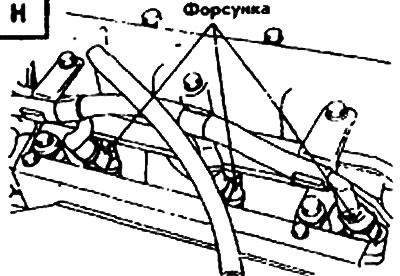

H. Nozzle.

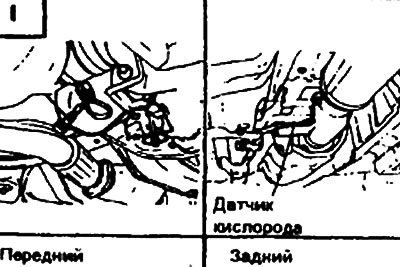

I. Oxygen sensor (HO2D).

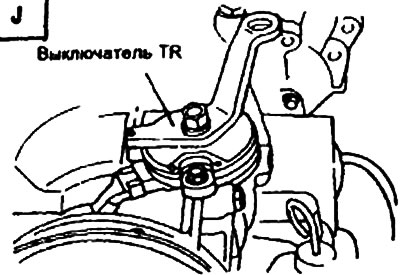

J. Transmission selector.

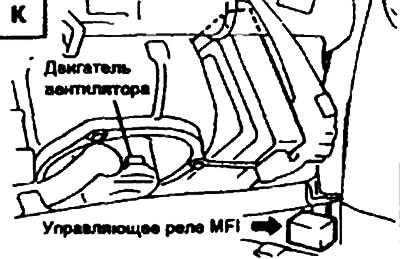

K. Fuel injection control relay.

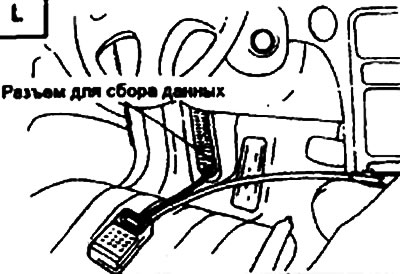

L. Data acquisition line connector.

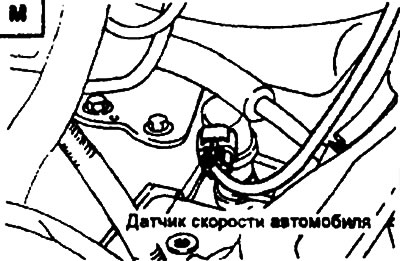

M. Vehicle speed sensor.

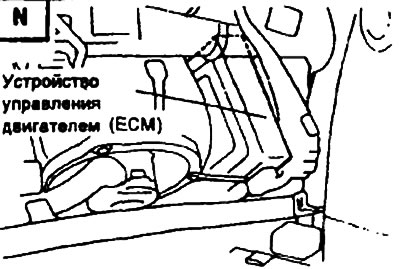

N. Engine Control Module (ECM).

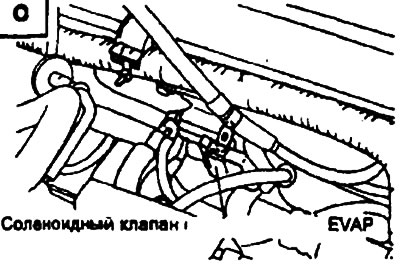

O. EVAP tank vent solenoid valve.

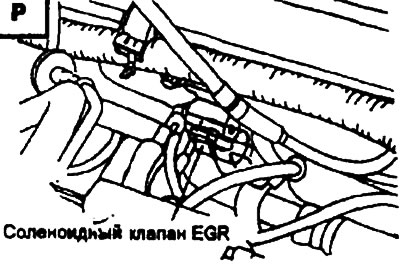

R. Exhaust gas recirculation sensor EGR.
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
