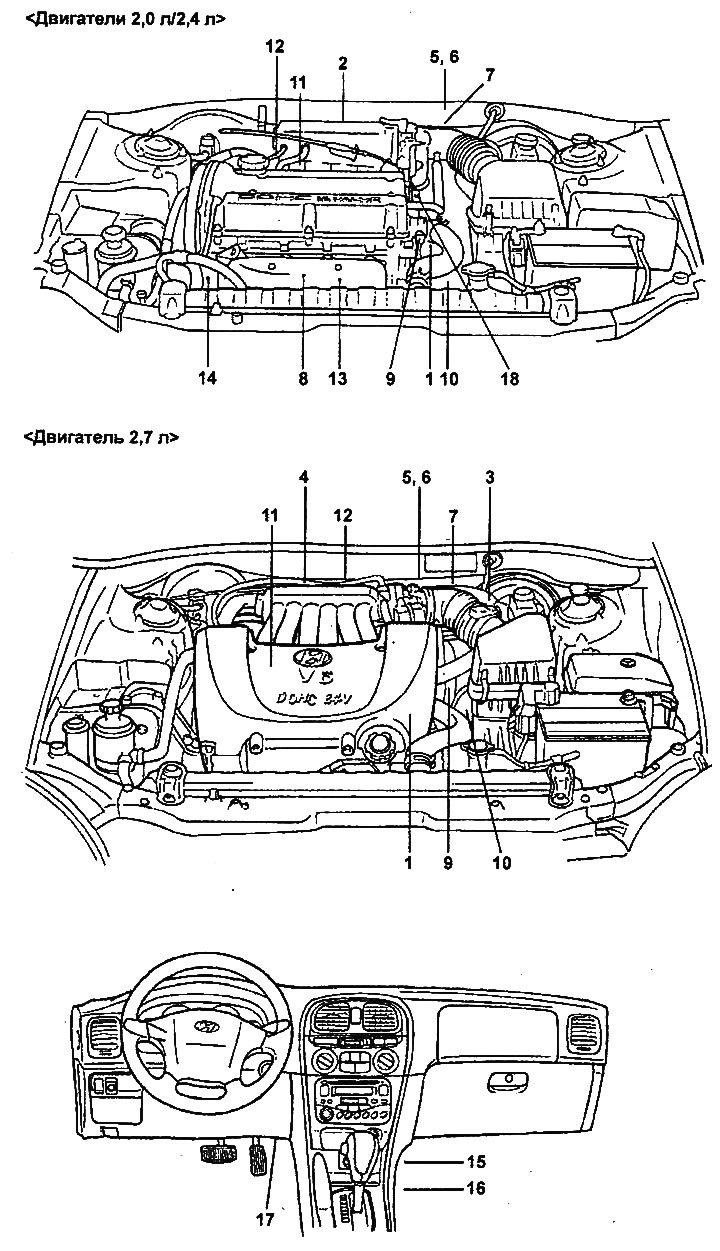

Location of fuel injection system components (MFI).
1 - coolant temperature sensor, 2 - intake manifold absolute pressure sensor (2.0L engines), 3 - mass air flow sensor (engine 2.7 l), 4 - intake air temperature sensor (engine 2.7 l), 5 - throttle position sensor, 6 - sensor-switch of the fully closed throttle position, 7 - idle speed control servo drive, 8 - oxygen sensor, 9 - camshaft position sensor, 10 - crankshaft position sensor, 11 - injector, 12 - canister purge solenoid valve, 13 - knock sensor, 14 - fluid pressure switch in the power steering hydraulic system, 15 - electronic engine control unit, 16 - main injection system relay, 17 - standard diagnostic connector, 18 - malfunction sensor ignition systems (engines 2.0 l / 2.4 l).
