Mirror control (Hyundai Sonata EF)

Contents: Electrically adjustable side mirrors ⇓ Interior rearview mirror with…⇓ Electrochromic anti-glare rearview…⇓

Electrically adjustable side mirrors

Caution: Do not scrape ice off the mirror glass, as this may damage the mirror surface. If ice interferes with the mirror's movement, do not attempt to remove it by force. To remove ice, use aerosol de-icers, a sponge or cloth soaked in warm water.

1. The side rearview mirrors can be controlled remotely when the ignition key is in the "ON" or "ACC" position.

2. Selection of control of the right or left mirror is carried out by setting the switch for selecting the adjustable mirror to the corresponding position: "R" - right mirror; "L" - left mirror.

The original version is stored on the website: www.hyundaibook.ru

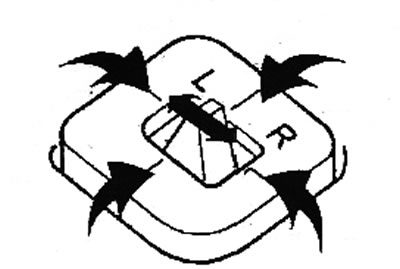

3. Further adjustment of the mirror position is carried out by pressing the corresponding side of the mirror position adjustment switch button, as shown in the figure.

4. After setting the mirror to the desired position, set the adjustable mirror selection switch to the middle position.

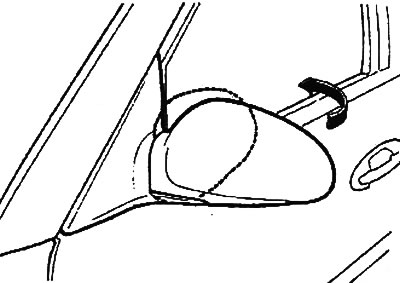

5. The mirror can be folded to avoid damage when parking the car. If you press on the mirror with your hand, it will fold.

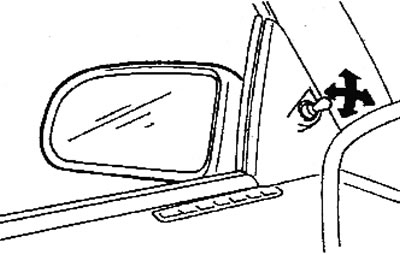

Note: On models without electric mirrors, the mirror position is adjusted by moving the handle to the appropriate position.

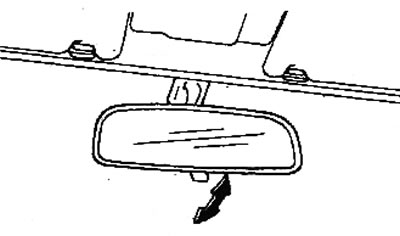

Interior rearview mirror with mechanical anti-glare device

The car is equipped with an interior rearview mirror with two positions ("day"/"night"). To select the "night" position (anti-glare effect), pull the lever at the bottom of the mirror towards you. In this position, the glare of the headlights of cars driving behind you at night is reduced.

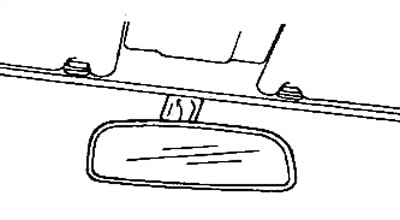

Electrochromic anti-glare rearview mirror

Some vehicles are equipped with an electrochromic mirror that will automatically darken depending on the light conditions to reduce the glare from headlights of vehicles driving behind you at night.
