Fig. 2.59. Powertrain supports
Removal the side engine mount
Unscrew the bolts securing the side engine support (to the engine and body).

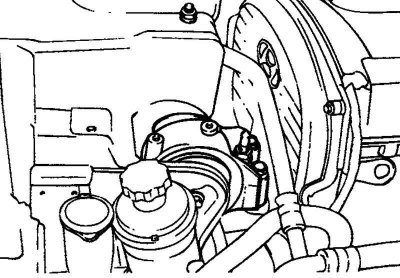

Fig. 2.60. Lateral engine support
Remove the side engine support (assembled with the bracket) from the engine (Fig. 2.60).
Removing the gearbox support
Loosen the gearbox support cushion mounting bolt.

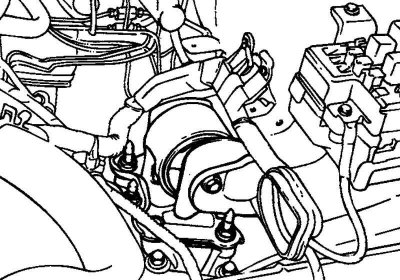

Fig. 2.61. Gearbox support bracket
Remove the support bracket (Fig. 2.61).
Removal the front engine mount

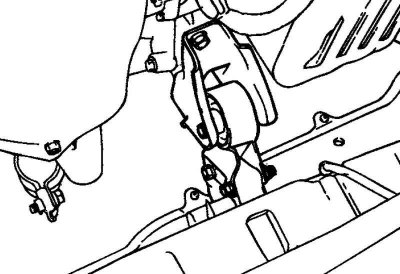

Fig. 2.62. Front engine mount
Remove the front engine mount assembly from the subframe (Fig. 2.62).
Removing the rear engine mount
Loosen the support cushion mounting bolt.
[The original text is published on the website HYUNDAIBOOK.ru]

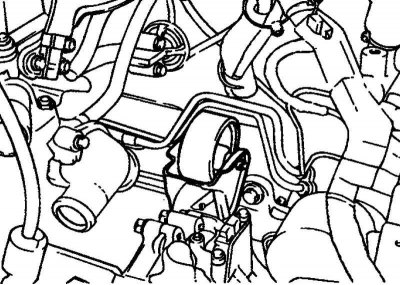

Fig. 2.63. Rear engine mount
Remove the rear engine mount assembly (2.63) from the subframe.
