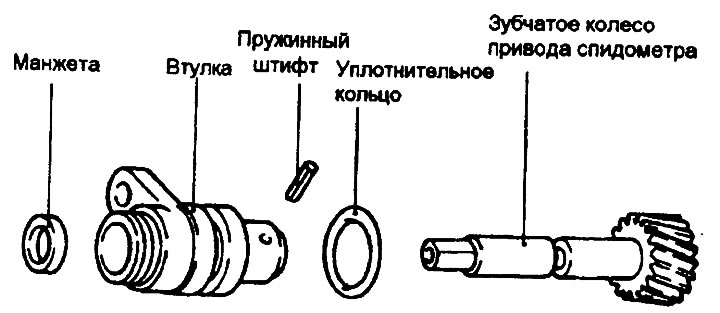

Speedometer Drive — Assembly (Hyundai Sonata Y3)

Assembly

1. Apply gear oil to the speedometer drive pinion shaft and install the shaft.

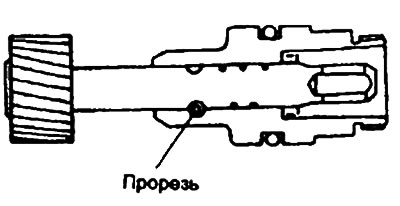

2. Install the spring pin so that its slot does not face the gear shaft.
